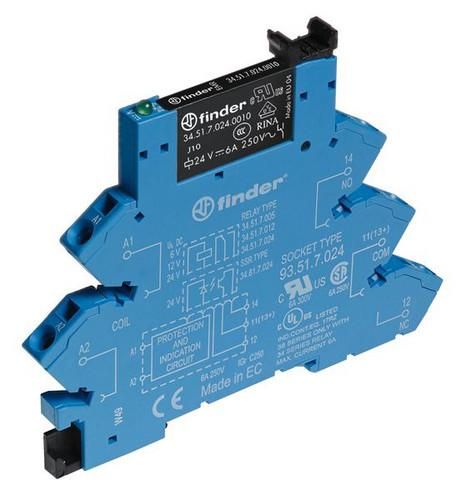

Coupling relay for DIN rail with tension spring terminals, 1 changeover contact 6 A / 250 V AC, coil voltage 24 V AC/DC, contact material AgSnO2, LED and EMC interference suppression are integrated in the socket
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Rated control supply voltage Us at AC 50 Hz: | 24 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 V |
| Rated control supply voltage Us at DC: | 24 V |
| Voltage type for actuation: | AC/DC |
| Design of the electrical connection: | Spring-loaded connection |
| Drive, polarity: | polarized |
| Height: | 93.6 mm |
| Width: | 6.2 mm |
| Depth: | 76 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | yes |
| Protection class (IP): | IP20 |
| Rated current: | 6 A |
| With LED display: | yes |
Features
Complete device with base
Yes
Drive, polarity
Polarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
38.61.0.024.4060
GTIN
8012823306957
Number of contacts as changeover
1
Design of the electrical connection
Spring-loaded connection
Rated control supply voltage Us at AC 50 Hz
24V
Rated control supply voltage Us at AC 60 Hz
24V
Rated control supply voltage Us at DC
24V
Width
6.2 mm
Height
93.6 mm
With LED display
Yes
With removable clamps
No
Rated current
6A
IP protection)
IP20
Voltage type for actuation
AC/DC
Depth
76 mm
