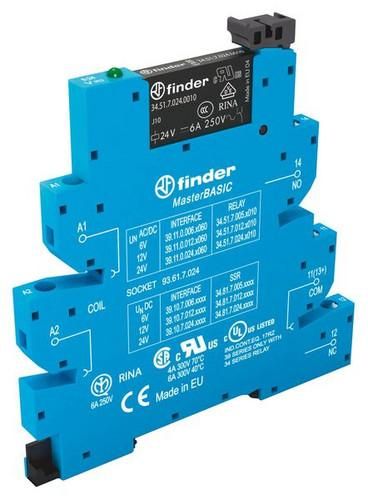

MasterBASIC narrow coupling relay for DIN rail, with screw connections, modular design, 1 changeover contact for 6 A, contact material AgNi, can be used universally as a coupling relay in the input to the PLC or in the output of the PLC to control actuators, LED display, terminals A1 or A2 and 11 can be bridged, coil voltage 12 V AC/DC
| Property | Value |
| Number of contacts as changeover contacts: | 1 |
| Rated control supply voltage Us at AC 50 Hz: | 12 V |
| Rated control supply voltage Us at AC 60 Hz: | 12 V |
| Rated control supply voltage Us at DC: | 12 V |
| Voltage type for actuation: | AC/DC |
| Design of the electrical connection: | screw connection |
| Drive, polarity: | unpolarized |
| Height: | 87 mm |
| Width: | 6.2 mm |
| Depth: | 90.7 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | yes |
| Protection class (IP): | IP20 |
| Rated current: | 6 A |
| With LED display: | yes |
Features
Complete device with base
Yes
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
39.11.0.012.0060
GTIN
8012823353609
Number of contacts as changeover
1
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
12V
Rated control supply voltage Us at AC 60 Hz
12V
Rated control supply voltage Us at DC
12V
Width
6.2 mm
Height
87 mm
With LED display
Yes
With removable clamps
No
Rated current
6A
IP protection)
IP20
Voltage type for actuation
AC/DC
Depth
90.7 mm
