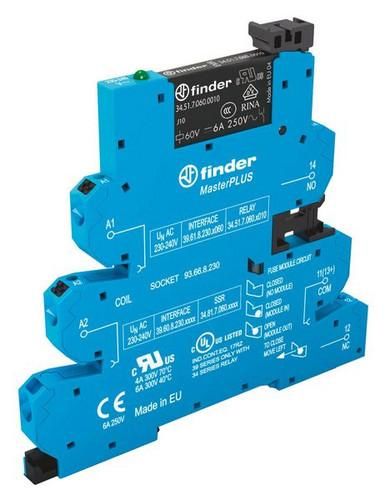

MasterPlus narrow coupling relay for DIN rail, with push-in terminals, modular design, 1 changeover contact for 6 A, contact material AgNi, can be used universally as a coupling relay in the input to the PLC or in the output of the PLC to control actuators, LED display, terminals A1 or A2 and 11 can be bridged, output fuse module type 093.63 for 5 x 20 mm fine fuses can be used instead of the blind plug, coil voltage 220 V DC.
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Rated control supply voltage Us at DC: | 220 V |
| Type of voltage for Actuation: | DC |
| Design of the electrical connection: | Plug connection |
| Drive, polarity: | polarized |
| Height: | 94.3 mm |
| Width: | 6.2 mm |
| Depth: | 90.7 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | yes |
| Protection class (IP): | IP20 |
| Rated current: | 6 A |
| With LED display: | yes |
Features
Complete device with base
Yes
Drive, polarity
Polarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Manufacturer
HAN
39.61.7.220.0060
GTIN
8012823390543
Number of contacts as changeover
1
Design of the electrical connection
Plug connection
Rated control supply voltage Us at DC
220V
Width
6.2 mm
Height
94.3 mm
With LED display
Yes
With removable clamps
No
Rated current
6A
IP protection)
IP20
Voltage type for actuation
DC
Depth
90.7 mm
