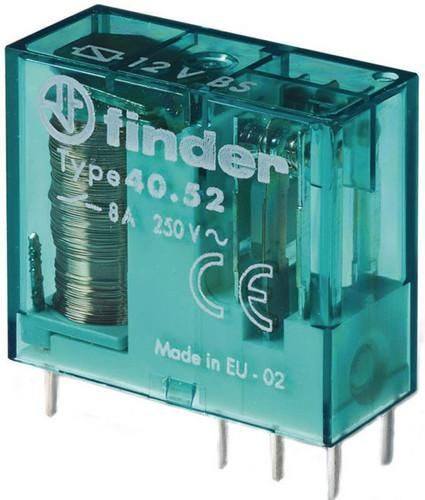

Print relay, bistable (remanence relay with one coil), 2 changeover contacts for 8 A / 250 V AC Contact pin pitch: 5.0 mm Contact material AgNi, coil data: 6 V AC/DC*, 1 W / 1 VA, 33 Ohm *external components are required for resetting and controlling with an AC voltage (see catalog Series 40) Relay protection class: RT I I-- See technical explanations Notes for automatic soldering process
| Property | Value |
| Number of contacts as changeover contacts: | 2 |
| Rated control supply voltage Us at AC 50 Hz: | 6 V |
| Rated control supply voltage Us at AC 60 Hz: | 6 V |
| Rated control supply voltage Us at DC: | 6 V |
| Type of voltage for actuation: | AC/DC |
| Design of the electrical connection: | PCB connection |
| Drive, polarity: | polarized |
| Height: | 25 mm |
| Width: | 12.4 mm |
| Depth: | 29 mm |
| Switching behavior of the drive: | Remanence |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP20 |
Features
Complete device with base
No
Drive, polarity
Polarized
Type of switching contact
Single contact
Switching behavior of the drive
Remanence
With positively guided contacts
No
Minimal order
50 pcs
Manufacturer
HAN
40.52.6.006.0000
GTIN
8012823239910
Number of contacts as changeover
2
Design of the electrical connection
PCB connection
Rated control supply voltage Us at AC 50 Hz
6V
Rated control supply voltage Us at AC 60 Hz
6V
Rated control supply voltage Us at DC
6V
Width
12.4 mm
Height
25 mm
With removable clamps
No
IP protection)
IP20
Voltage type for actuation
AC/DC
Depth
29 mm
