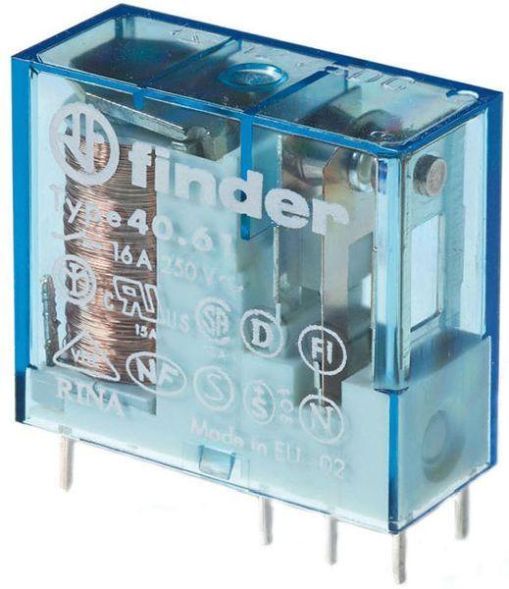

Print relay with 3.5 mm pin length 1 changeover contact (AgNi) for 16 A / 250 V AC, contact pin pitch: 5 mm coil data: 12 V DC, 0.5 W, 288 Ohm, relay protection class: RT II - see technical explanations Notes for automatic soldering process
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Rated control supply voltage Us at DC: | 12 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | PCB connection |
| Drive, polarity: | unpolarized |
| Height: | 25 mm |
| Width: | 12.4 mm |
| Depth: | 29 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP20 |
| Rated current: | 16 A |
| With LED display: | no |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
HAB
40.61.7.012.1020
Minimal order
10 pcs
Manufacturer
HAN
40.61.7.012.1020
GTIN
8012823338354
Number of contacts as changeover
1
Design of the electrical connection
PCB connection
Rated control supply voltage Us at DC
12V
Width
12.4 mm
Height
25 mm
With LED display
No
With removable clamps
No
Rated current
16A
IP protection)
IP20
Voltage type for actuation
DC
Depth
29 mm
