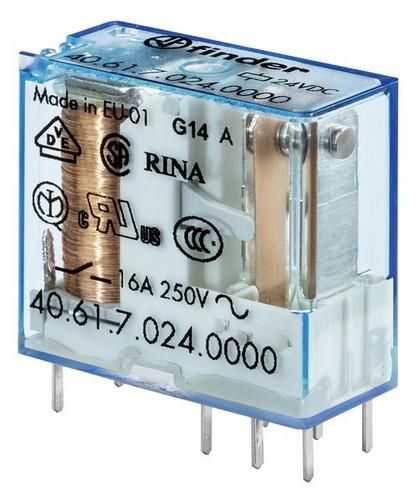

Series 40, plug-in/print relay, contact material AgNi, for 8 A, 10 A or 16 A / 250 V AC, DC coils: 0.5 W, AC coils 1.2 VA, relay protection class: RT II, safe separation between coil and contacts. Contact pin pitch: 5.0 mm
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Rated control supply voltage Us at DC: | 24 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | other |
| Drive, polarity: | unpolarized |
| Height: | 25 mm |
| 12.4 mm | |
| Depth: | 29 mm |
| Switching behavior of the Drive: | monostable |
| Type of switching contact: | single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection rating (IP): | IP20 |
| Rated current: | 16 |
| With LED display: | no |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Manufacturer
HAN
40.61.7.024.0000
GTIN
8012823241579
Number of contacts as changeover
1
Design of the electrical connection
Other
Rated control supply voltage Us at DC
24V
Width
12.4 mm
Height
25 mm
With LED display
No
With removable clamps
No
Rated current
16A
IP protection)
IP20
Voltage type for actuation
DC
Depth
29 mm
