Description

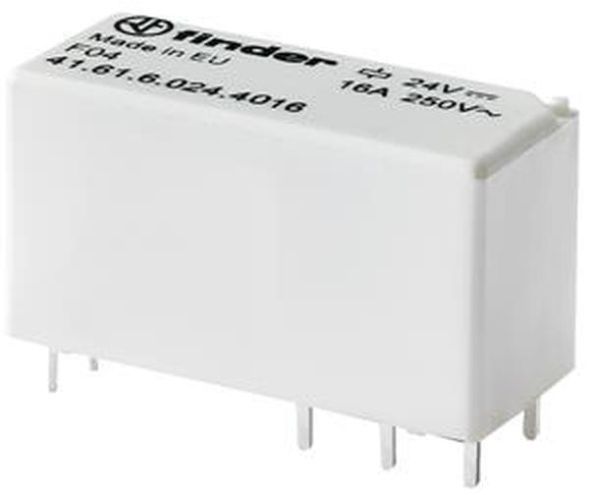

Low plug-in/print relay, bistable with 2 coil versions - polarized: A3 (+) A2 (-) = SET, A3 (+) A1 (-) =RESET. 1 changeover contact for 16 A / 250 V AC. Contact material AgSnO2, contact pin pitch: 5.0 mm. Coil data: 12 V DC, 0.65 W, 220 Ohm, ambient temperature -40 to + 85° C. Relay protection class: RT II.
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Rated control supply voltage Us at DC: | 12 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | PCB connection |
| Drive, polarity: | polarized |
| Height: | 15.7 mm |
| Width: | 12.6 mm |
| Depth: | 29 mm |
| Switching behavior of the drive: | bistable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP40 |
| Rated current: | 16 A |
| With LED display: | no |
Features
Complete device with base
No
Drive, polarity
Polarized
Type of switching contact
Single contact
Switching behavior of the drive
Bistable
With positively guided contacts
No
Minimal order
20 pcs
Manufacturer
HAN
41.61.6.012.4016
GTIN
8012823391663
Number of contacts as changeover
1
Design of the electrical connection
PCB connection
Rated control supply voltage Us at DC
12V
Width
12.6 mm
Height
15.7 mm
With LED display
No
With removable clamps
No
Rated current
16A
IP protection)
IP40
Voltage type for actuation
DC
Depth
29 mm
