Description

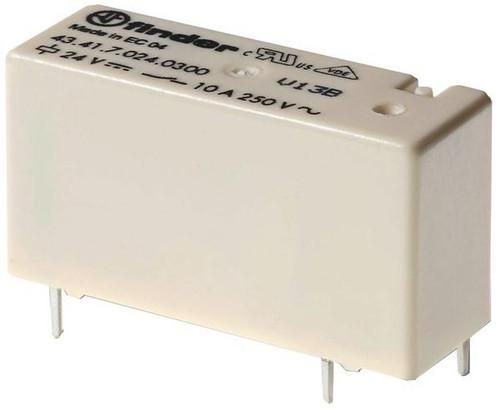

low print relay 1 normally open contact for 10 A / 250 V AC contact pin pitch: 5.0 mm contact material AgNi, coil data: 24 V DC, 0.25 W, 2200 Ohm, relay protection class: RT II
| Property | Value |
| Number of contacts as normally open contact: | 1 |
| Rated control supply voltage Us at DC: | 24 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | PCB connection |
| Drive, Polarity: | unpolarized |
| Height: | 15.4 mm |
| Width: | 10.2 mm |
| Depth: | 28.6 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP40 |
| Rated current: | 10 A |
| With LED display: | no |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
20 pcs
Manufacturer
HAN
43.41.7.024.0300
GTIN
8012823303369
Number of contacts as normally open
1
Design of the electrical connection
PCB connection
Rated control supply voltage Us at DC
24V
Width
10.2 mm
Height
15.4 mm
With LED display
No
With removable clamps
No
Rated current
10A
IP protection)
IP40
Voltage type for actuation
DC
Depth
28.6 mm
