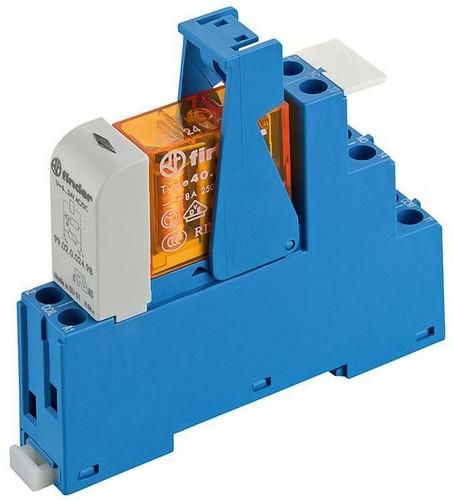

Coupling relay for DIN rail with screw connections, 2 changeover contacts 8 A / 250 V AC, coil voltage 12 V AC, contact material AgNi, with integrated LED and EMC suppression.
| Property | Value |
| Number of contacts as changeover contacts: | 2 |
| Rated control supply voltage Us at AC 50 Hz: | 12 V |
| Rated control supply voltage Us at AC 60 Hz: | 12 V |
| Type of voltage for actuation: | AC |
| Design of the electrical Connection: | Screw connection |
| Drive, polarity: | unpolarized |
| Height: | 78.6 mm |
| Width: | 15.8 mm |
| Depth: | 75.3 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | yes |
| Protection class (IP): | IP20 |
| Rated current: | 8 A |
| With LED display: | yes |
Features
Complete device with base
Yes
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
48.52.8.012.0060
GTIN
8012823120331
Number of contacts as changeover
2
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
12V
Rated control supply voltage Us at AC 60 Hz
12V
Width
15.8 mm
Height
78.6 mm
With LED display
Yes
With removable clamps
No
Rated current
8A
IP protection)
IP20
Voltage type for actuation
AC
Depth
75.3 mm
