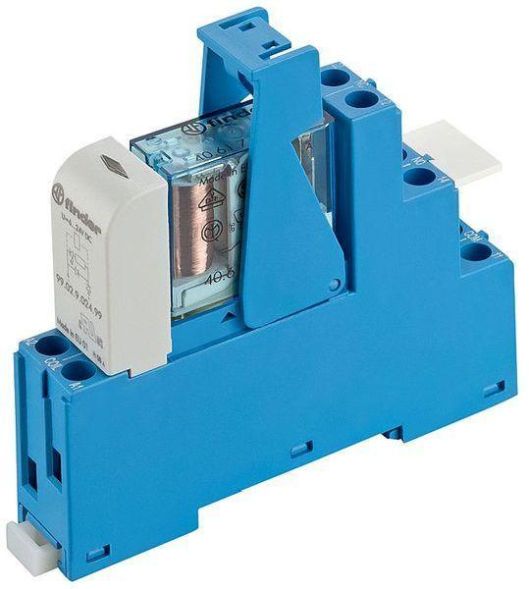

Coupling relay for DIN rail with screw connections, 1 changeover contact 16 A / 250 V AC, coil voltage 12 V DC, contact material AgSnO2, with integrated LED and EMC suppression.
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Rated control supply voltage Us at DC: | 12 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | Screw connection |
| Drive, polarity: | Poled |
| Height: | 78.6 mm |
| Width: | 15.8 mm |
| Depth: | 75.3 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with Socket: | yes |
| Protection class (IP): | IP20 |
| Rated current: | 16 A |
| With LED display: | yes |
Features
Complete device with base
Yes
Drive, polarity
Polarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
HAB
1 changeover contact 16A coil 12V
Minimal order
10 pcs
Manufacturer
HAN
48.61.7.012.4050
GTIN
8012823369891
Number of contacts as changeover
1
Design of the electrical connection
Screw connection
Rated control supply voltage Us at DC
12V
Width
15.8 mm
Height
78.6 mm
With LED display
Yes
With removable clamps
No
Rated current
16A
IP protection)
IP20
Voltage type for actuation
DC
Depth
75.3 mm
