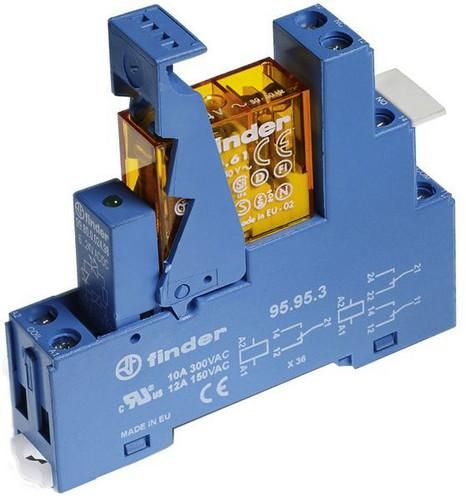

Series 49, mounted coupling relay, 1 changeover contact 16 A, used switching relays can be easily replaced, coils for AC or DC, 8 mm air and creepage distance between coil and contacts, 'safe separation' according to 0160 / EN 60335, for 35 mm rail, types ending in 4060: contact material - AgSnO2, for inrush currents up to 100 A
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Rated control supply voltage Us at AC 50 Hz: | 24 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 V |
| Voltage type for actuation: | AC |
| Design of the electrical connection: | screw connection |
| Drive, polarity: | unpolarized |
| Height: | 81.9 mm |
| Width: | 15.5 mm |
| Depth: | 75 mm |
| Switching behavior of the drive: | monostable |
| Type of Switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | yes |
| Protection class (IP): | IP20 |
| Rated current: | 16 A |
| With LED display: | yes |
Features
Complete device with base
Yes
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Manufacturer
HAN
49.61.8.024.0060
GTIN
8012823118079
Number of contacts as changeover
1
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
24V
Rated control supply voltage Us at AC 60 Hz
24V
Width
15.5 mm
Height
81.9 mm
With LED display
Yes
With removable clamps
No
Rated current
16A
IP protection)
IP20
Voltage type for actuation
AC
Depth
75 mm
