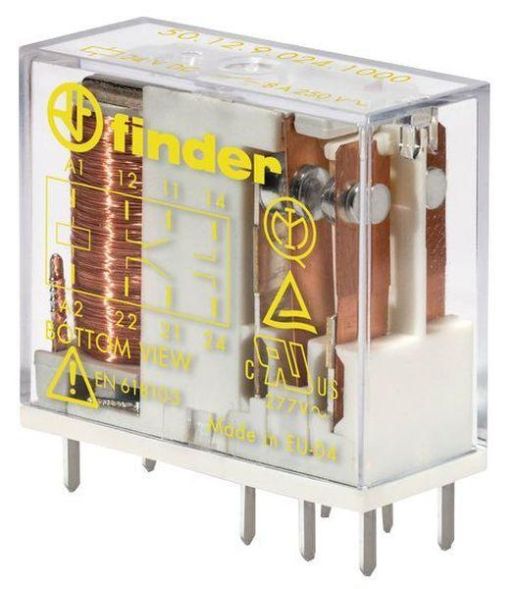

Print relay with positively guided contacts according to EN 61810-3, type B, 2 changeover contacts for 8 A, contact pin pitch 5 mm, contact material AgSnO2, supply voltage 12 V DC, coil resistance 205 Ohm. Coil power 0.7 W. Relay protection type RT II. According to EN 61810-3 (type B), only one normally closed contact and one normally open contact (11-12 and 21-24 or 21-22 and 11-14) may be used as positively guided contacts.
| Property | Value |
| Number of contacts as changeover contacts: | 2 |
| Rated control supply voltage Us for DC: | 12 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | PCB connection |
| Drive, polarity: | unpolarized |
| Height: | 25 mm |
| Width: | 12.4 mm |
| Depth: | 29 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | single contact |
| With positively guided contacts: | yes |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP40 |
| Rated current: | 8 A |
| With LED display: | no |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
Yes
HAB
50.12.9.012.4000
Minimal order
10 pcs
Manufacturer
HAN
50.12.9.012.4000
GTIN
8012823329741
Number of contacts as changeover
2
Design of the electrical connection
PCB connection
Rated control supply voltage Us at DC
12V
Width
12.4 mm
Height
25 mm
With LED display
No
With removable clamps
No
Rated current
8A
IP protection)
IP40
Voltage type for actuation
DC
Depth
29 mm
