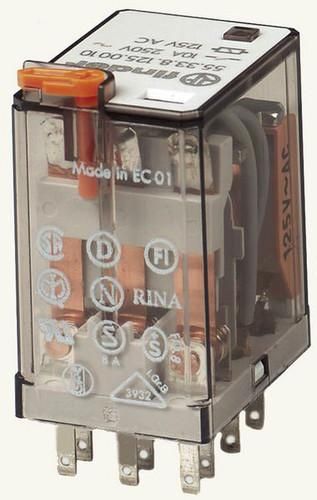

Miniature plug-in relay 3 changeover contacts for 10 A / 250 V AC, contact material AgNi, coil data: 48 V AC, 1.5 VA, 770 Ohm, lockable manual operation, relay protection class: RT I
| Property | Value |
| Number of contacts as changeover contacts: | 3 |
| Rated control supply voltage Us at AC 50 Hz: | 48 V |
| Rated control supply voltage Us at AC 60 Hz: | 48 V |
| Type of voltage for actuation: | AC |
| Design of the electrical connection: | Plug connection |
| Drive, polarity: | unpolarized |
| Height: | 37.2 mm |
| Width: | 20.7 mm |
| Depth: | 27.7 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP20 |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
55.33.8.048.0010
GTIN
8012823030654
Number of contacts as changeover
3
Design of the electrical connection
Plug connection
Rated control supply voltage Us at AC 50 Hz
48V
Rated control supply voltage Us at AC 60 Hz
48V
Width
20.7 mm
Height
37.2 mm
With removable clamps
No
IP protection)
IP20
Voltage type for actuation
AC
Depth
27.7 mm
