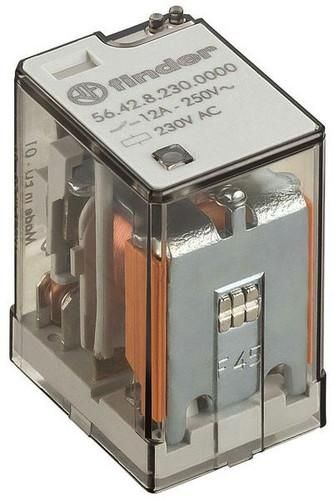

Power PCB relay 2 changeover contacts for 12 A / 250 V AC. Contact material AgNi, coil data: 230 V AC, 1.5 VA, 17000 Ohm, relay protection class: RT I
| Property | Value |
| Number of contacts as changeover contacts: | 2 |
| Rated control supply voltage Us at AC 50 Hz: | 230 V |
| Rated control supply voltage Us at AC 60 Hz: | 230 V |
| Type of voltage for actuation: | AC |
| Design of the electrical connection: | PCB connection |
| Drive, polarity: | unpolarized |
| Height: | 37.7 mm |
| Width: | 20.7 mm |
| Depth: | 27.7 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP20 |
| Rated current: | 12 A |
| With LED display: | no |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
56.42.8.230.0000
GTIN
8012823249841
Number of contacts as changeover
2
Design of the electrical connection
PCB connection
Rated control supply voltage Us at AC 50 Hz
230V
Rated control supply voltage Us at AC 60 Hz
230V
Width
20.7 mm
Height
37.7 mm
With LED display
No
With removable clamps
No
Rated current
12A
IP protection)
IP20
Voltage type for actuation
AC
Depth
27.7 mm
