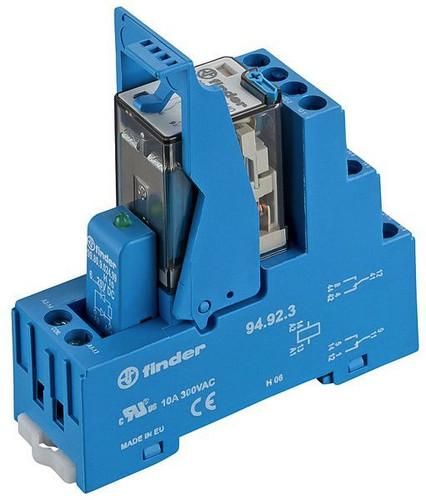

Coupling relay for DIN rail with screw connections, 2 changeover contacts 10 A / 250 V AC, coil voltage 24 V DC, contact material AgNi, with integrated LED and EMC suppression
| Property | Value |
| Number of contacts as changeover contacts: | 2 |
| Rated control supply voltage Us at DC: | 24 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | Screw connection |
| Drive, polarity: | polarized |
| Height: | 79.7 mm |
| Width: | 27 mm |
| Depth: | 86.1 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | yes |
| Protection class (IP): | IP20 |
| Rated current: | 10 A |
| With LED display: | yes |
Features
Complete device with base
Yes
Drive, polarity
Polarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Manufacturer
HAN
59.32.9.024.0050
GTIN
8012823126142
Number of contacts as changeover
2
Design of the electrical connection
Screw connection
Rated control supply voltage Us at DC
24V
Width
27 mm
Height
79.7 mm
With LED display
Yes
With removable clamps
No
Rated current
10A
IP protection)
IP20
Voltage type for actuation
DC
Depth
86.1 mm
