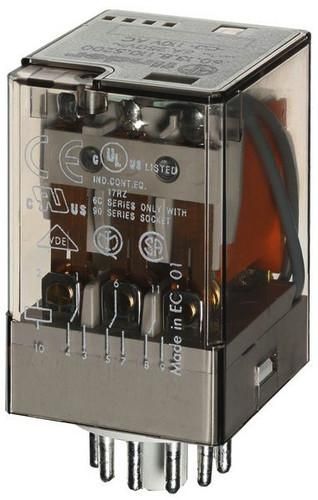

Industrial plug-in relay 3 changeover contacts for 10 A / 250 V AC. Contact material AgNi, with double contacts, coil data: 230 V AC, 2.2 VA, 7250 Ohm, lockable/momentary manual operation and mechanical display, relay protection class: RT I
| Property | Value |
| Number of contacts as changeover contacts: | 3 |
| Rated control supply voltage Us at AC 50 Hz: | 230 V |
| Rated control supply voltage Us at AC 60 Hz: | 230 V |
| Type of voltage for actuation: | AC |
| Design of the electrical Connection: | Plug connection |
| Drive, polarity: | unpolarized |
| Height: | 54.2 mm |
| Width: | 32.5 mm |
| Depth: | 36.4 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Double contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP20 |
| Rated current: | 10 A |
| With LED display: | no |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Double contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
60.13.8.230.0240
GTIN
8012823101262
Number of contacts as changeover
3
Design of the electrical connection
Plug connection
Rated control supply voltage Us at AC 50 Hz
230V
Rated control supply voltage Us at AC 60 Hz
230V
Width
32.5 mm
Height
54.2 mm
With LED display
No
With removable clamps
No
Rated current
10A
IP protection)
IP20
Voltage type for actuation
AC
Depth
36.4 mm
