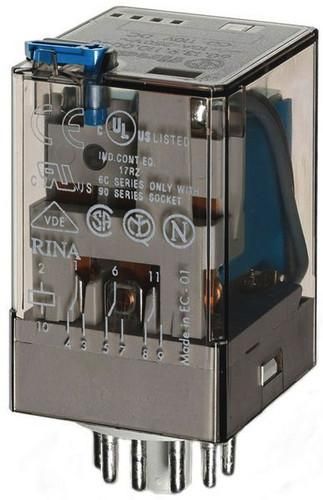

Industrial plug-in relay 3 changeover contacts for 10 A / 250 V AC. Contact material AgNi hard gold-plated, coil data: 24 V DC, 1.3 W, 445 Ohm, lockable/momentary manual operation and LED and freewheeling diode (+on A1/2), relay protection class: RT I
| Property | Value |
| Number of contacts as changeover contacts: | 3 |
| Rated control supply voltage Us at DC: | 24 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | Plug connection |
| Drive, polarity: | Poled |
| Height: | 54.2 mm |
| Width: | 32.5 mm |
| Depth: | 36.4 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with Socket: | no |
| Protection class (IP): | IP20 |
| Rated current: | 10 A |
| With LED display: | yes |
Features
Complete device with base
No
Drive, polarity
Polarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
60.13.9.024.5070
GTIN
8012823051208
Number of contacts as changeover
3
Design of the electrical connection
Plug connection
Rated control supply voltage Us at DC
24V
Width
32.5 mm
Height
54.2 mm
With LED display
Yes
With removable clamps
No
Rated current
10A
IP protection)
IP20
Voltage type for actuation
DC
Depth
36.4 mm
