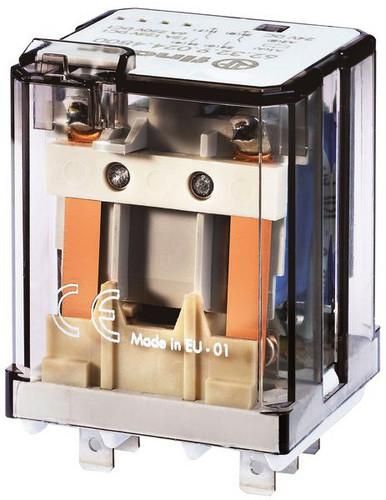

Power relay with plug-in connections, with blow-out magnet for switching high inductive and resistive DC loads. 2 make contacts for 16 A/250 V AC AC1, contact opening path 2.1 mm, contact material AgSnO2, max. inrush current: 100 A - 5 ms, with Faston 187 connections (4.8 x 0.5 mm), coil data: 24 V DC, 1.3 W, 445 Ohm. Relay protection class: RT I.
| Property | Value |
| Number of contacts as normally open: | 2 |
| Rated control supply voltage Us at DC: | 24 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | Plug connection |
| Drive, polarity: | unpolarized |
| Height: | 49.1 mm |
| Width: | 38.2 mm |
| Depth: | 35.8 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP20 |
| Nominal current: | 16 A |
| With LED display: | no |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
62.32.9.024.4800
GTIN
8012823396569
Number of contacts as normally open
2
Design of the electrical connection
Plug connection
Rated control supply voltage Us at DC
24V
Width
38.2 mm
Height
49.1 mm
With LED display
No
With removable clamps
No
Rated current
16A
IP protection)
IP20
Voltage type for actuation
DC
Depth
35.8 mm
