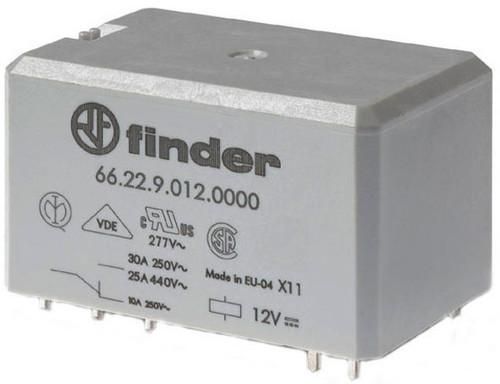

PCB relay with double pin design, 2 normally open contacts 30 A / 250 V AC, contact material: AgCdO, contact spacing greater than 1.5 mm. Coil data: 12 V DC, 1.7 W, 85 Ohm.
| Property | Value |
| Number of contacts as normally open: | 2 |
| Rated control supply voltage Us at DC: | 12 V |
| Type of voltage for actuation: | DC |
| Design of the electrical connection: | PCB connection |
| Drive, polarity: | unpolarized |
| Height: | 31 mm |
| Width: | 33.5 mm |
| Depth: | 51.5 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP40 |
| Nominal current: | 30 A |
| With LED display: | no |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
66.22.9.012.0600
GTIN
8012823335155
Number of contacts as normally open
2
Design of the electrical connection
PCB connection
Rated control supply voltage Us at DC
12V
Width
33.5 mm
Height
31 mm
With LED display
No
With removable clamps
No
Rated current
30A
IP protection)
IP40
Voltage type for actuation
DC
Depth
51.5 mm
