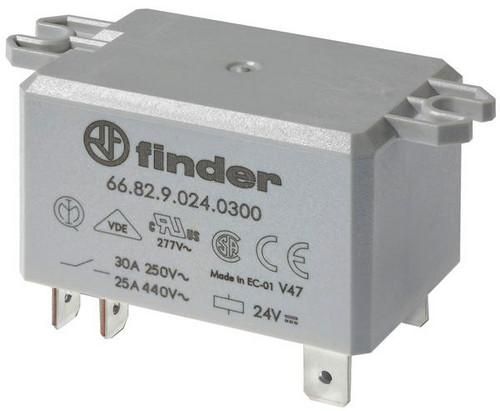

Power relay with flange on the head, Faston 250 connections, 2 normally open contacts 30 A / 250 V AC, contact material: AgCdO, coil data: 24 V AC 3.6 VA, 50 Ohm. Flange on the head of the relay.
| Property | Value |
| Number of contacts as normally open: | 2 |
| Rated control supply voltage Us at AC 50 Hz: | 24 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 V |
| Type of voltage for actuation: | AC |
| Design of the electrical connection: | Flat plug connection |
| Drive, polarity: | unpolarized |
| Height: | 40.75 mm |
| Width: | 33.5 mm |
| Depth: | 51.5 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | IP40 |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Minimal order
10 pcs
Manufacturer
HAN
66.82.8.024.0300
GTIN
8012823289281
Number of contacts as normally open
2
Design of the electrical connection
Flat plug connection
Rated control supply voltage Us at AC 50 Hz
24V
Rated control supply voltage Us at AC 60 Hz
24V
Width
33.5 mm
Height
40.75 mm
With removable clamps
No
IP protection)
IP40
Voltage type for actuation
AC
Depth
51.5 mm
