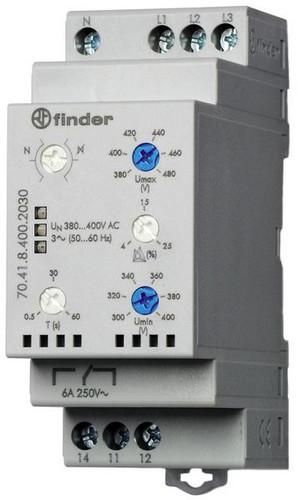

3-phase mains monitoring for series installation, with or without N-conductor monitoring (selectable), measuring range 300 - 480 V AC, 1 changeover contact for 6 A (AC1), contact material AgNi, monitoring of: overvoltage and undervoltage, over/undervoltage range, phase sequence, phase failure, phase asymmetry (4 to 25%) and N-conductor interruption, colored LED status display.
| Property | Value |
| Min. adjustable response delay time: | 1 s |
| Design of the electrical connection: | Screw connection |
| Max. permissible release delay time: | 60 s |
| Number of contacts as changeover contacts: | 1 |
| Min. adjustable release delay time: | 0.5 s |
| Max. permissible response delay time: | 1 s |
| Width: | 35 mm |
| Height: | 88.8 mm |
| Depth: | 60.8 mm |
| Overvoltage detection function: | yes |
| Rated control supply voltage Us at AC 50 Hz: | 380 to 415 V |
| With removable terminals: | no |
| Phase sequence monitoring function: | yes |
| Phase failure detection function: | yes |
| Undervoltage detection function: | yes |
| Asymmetry detection function: | yes |
| Voltage measuring range: | 300 to 480 V |
| Rated control supply voltage Us at AC 60 Hz: | 380 to 415 V |
Features
Manufacturer
HAN
70.41.8.4002030
GTIN
8012823372228
Number of contacts as changeover
1
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
380 to 415 V
Rated control supply voltage Us at AC 60 Hz
380 to 415 V
Width
35 mm
Height
88.8 mm
With removable clamps
No
Depth
60.8 mm
