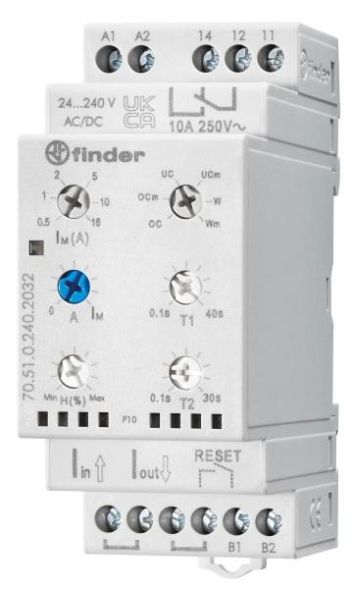

Universal current monitoring, multifunction, for 35 mm mounting rail, 1 changeover contact for 10 A / 250 V AC, contact material AgSnO2, 35 mm wide, AC/DC current monitoring adjustable, AC 50/60 Hz (0.05...10) A, via converter up to 600 A, DC (0.05...10) A, hysteresis 5...50% (1...99% current range monitoring), on-off delay time (0.1...30) s, switch-on lock time (0.1...40) s, supply voltage 24...240 V AC/DC, memory function selectable, LED status display, protection class: IP 20
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Max. permissible response delay time: | 30 s |
| Min. adjustable response delay time: | 0.1 s |
| Max. permissible release delay time: | 30 s |
| Min. adjustable release delay time: | 0.1 s |
| Design of the electrical connection: | screw connection |
| Width: | 35 mm |
| Height: | 84 mm |
| Depth: | 60.8 mm |
| With removable terminals: | no |
| 1-phase undercurrent possible: | yes |
| 3-phase undercurrent possible: | no |
| 1-phase overcurrent possible: | yes |
| 3-phase overcurrent possible: | no |
| 1-phase window possible: | yes |
| 3-phase window possible: | no |
| Includes DC undercurrent function: | yes |
| Includes DC overcurrent function: | yes |
| DC window function: | yes |
| Current measuring range: | 0.05 to 16 A |
| Rated control supply voltage Us at AC 50 Hz: | 19.2 to 264 V |
| Rated control supply voltage Us at AC 60 Hz: | 19.2 to 264 V |
| Rated control supply voltage Us at DC: | 19.2 to 264 V |
| External current transformer: | yes |
Features
HAB
Universal 1 changeover 10 A
Manufacturer
HAN
70.51.0.240.2032
GTIN
8012823444239
Number of contacts as changeover
1
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
19.2 to 264 V
Rated control supply voltage Us at AC 60 Hz
19.2 to 264 V
Rated control supply voltage Us at DC
19.2 to 264 V
Width
35 mm
Height
84 mm
With removable clamps
No
Depth
60.8 mm
