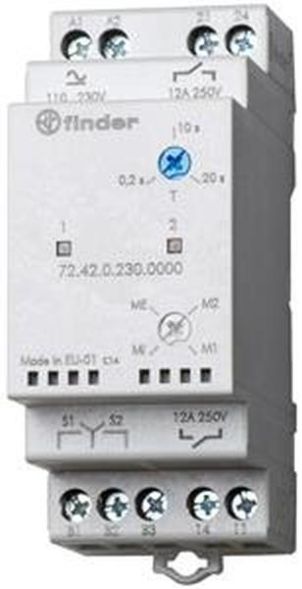

2 normally open contacts, 12 A, 90 - 264 VAC supply voltage, contact material AgNi, 35 mm wide, with LED, IP 20
| Property | Value |
| Number of contacts as normally open contacts: | 2 |
| Design of the electrical connection: | Screw connection |
| Max. permissible pull-in delay time: | 20 s |
| Min. adjustable response delay time: | 0.2 s |
| Physical measuring principle: | other |
| Width: | 35 mm |
| Height: | 88.8 mm |
| Depth: | 60.8 mm |
| With removable terminals: | no |
| Adjustable response sensitivity: | no |
| Rated control supply voltage Us at AC 50 Hz: | 110 to 240 V |
| Rated control supply voltage Us at AC 60 Hz: | 110 to 240 V |
| Rated control supply voltage Us at DC: | 110 to 240 V |
| Cascadable: | yes |
Features
Manufacturer
HAN
72.42.0.230.0000
GTIN
8012823362717
Response sensitivity adjustable
No
Number of contacts as normally open
2
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
110 to 240 V
Rated control supply voltage Us at AC 60 Hz
110 to 240 V
Rated control supply voltage Us at DC
110 to 240 V
Width
35 mm
Height
88.8 mm
With removable clamps
No
Depth
60.8 mm
