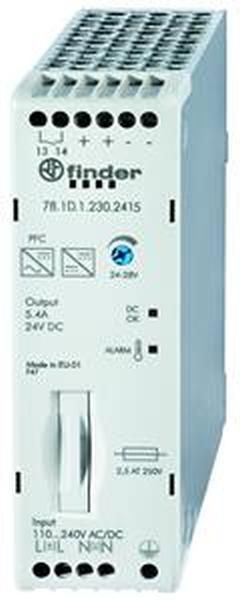

DIN rail switching power supply, input 110-240 V AC/DC, with AC voltage the power supply switches at zero crossing, output 130 W at 24 V DC, output voltage range adjustable from 24-28 V DC. Nominal output current 5.4 A, max. peak current 10 A-5 ms, internal thermal protection, short circuit protection at the output. 2-stage power supply with active PFC: After switching off by the thermal protection, disconnect the power supply from the supply voltage and switch the supply voltage back on after cooling down. The power supply then works in normal operation again. Width 40 mm, for mounting rail 35 mm (EN 60715).,
| Property | Value |
| Installation height: | 136 mm |
| Performance level according to EN ISO 13849-1: | without |
| 1. Output voltage: | 24 V |
| Type of supply voltage: | AC |
| Max. Output current 1: | 5.4 A |
| Output voltage adjustable: | yes |
| Rated supply voltage at AC 50 Hz: | 110 to 240 V |
| Rated supply voltage at DC: | 110 to 240 V |
| Rated supply voltage at AC 60 Hz: | 110 to 240 V |
| Short-circuit proof: | yes |
| Stabilized: | yes |
| Suitable for safety functions: | no |
| Direct mounting possible: | no |
| Design of the electrical connection: | screw connection |
| Output voltage regulated: | no |
| Power consumption: | 145 VA |
| Power output: | 130 W |
| Suitable for series installation: | no |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Protection class (IP): | IP20 |
| Width: | 40 mm |
| Height: | 136 mm |
| Depth: | 129.3 mm |
| Rated output voltage 1: | 24 V |
| Rated output current 1: | 5.4 A |
| Width in modular spacing: | 2.3 |
| Installation width: | 40 mm |
| SIL according to IEC 61508: | without |
| Protection class (NEMA): | 1 |
Features
Type of voltage of the supply voltage
AC
Rated supply voltage for DC
110 to 240 V
Short circuit proof
Yes
Power consumption
145 VA
HAB
110-240V/Output 130W 24V
Manufacturer
HAN
78.1D.1.230.2415
GTIN
8012823402697
Design of the electrical connection
Screw connection
Width
40 mm
Width in pitch units
2.3
Installation width
40 mm
Installation height
136 mm
Suitable for series installation
No
Suitable for security functions
No
Height
136 mm
Performance Level according to EN ISO 13849-1
Without
SIL according to IEC 61508
Without
IP protection)
IP20
Protection class (NEMA)
1
Depth
129.3 mm
Mounting rail possible
Yes
