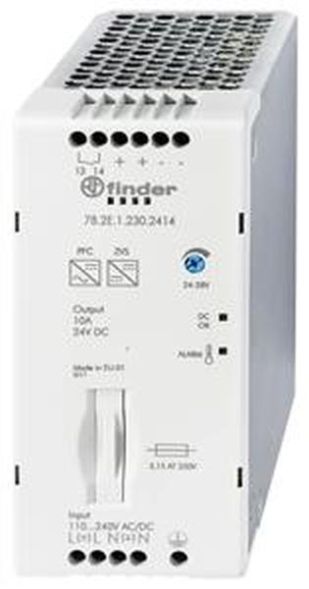

Finder 78.2E.1.230.2414 24V 240W switching power supply

Description

Features

Reviews

DIN rail switching power supply, input 110-240 V AC/DC, output 240 W at 24 V DC, output voltage range adjustable from 24-28 V DC. Output contact: positive logic, nominal output current 10 A, maximum peak current 25 A-5 ms, internal thermal protection, short circuit protection at the output. 2-stage power supply with active PFC: After switching off the power supply - reset by removing the supply voltage. The input fuse is replaceable. Width 60 mm, for mounting rail 35 mm (EN 60715).

Property	Value
Installation height:	136 mm
Performance level according to EN ISO 13849-1:	without
1. Output voltage:	24 to 28 V
Type of supply voltage:	AC
Max. Output current 1:	10.8 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	110 to 240 V
Rated supply voltage at DC:	110 to 240 V
Rated supply voltage at AC 60 Hz:	110 to 240 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	screw connection
Output voltage regulated:	no
Power consumption:	275 VA
Power output:	240 W
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	60 mm
Height:	136 mm
Depth:	129.3 mm
Nominal value of output voltage 1:	24 V
Nominal value of output current 1:	10 A
Width in modular spacing:	3.4
Installation width:	60 mm
SIL according to IEC 61508:	without
Protection class (NEMA):	1
