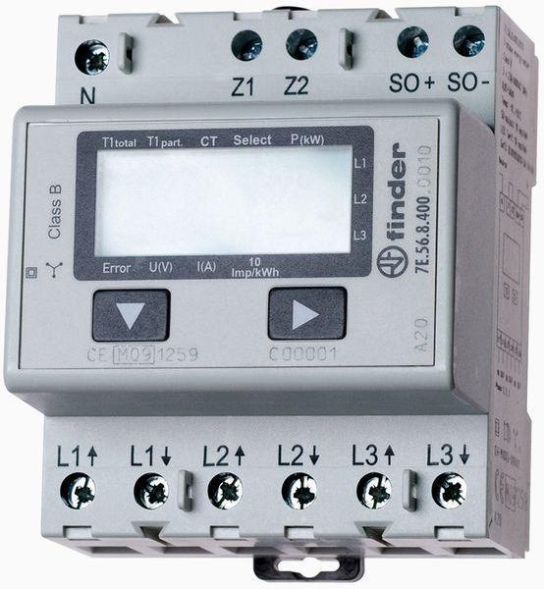

1 phase LCD three-phase current, for current transformers 5:5 to 1500:5 (A), for recording energy consumption in three-phase networks, accuracy class 1/B, device protection class II, high resistance to magnetic and mechanical manipulation, with SO, M-Bus or MODBUS interface for connection to central tariff devices and for energy management, sealable with cap as an accessory, for mounting rail DIN EN 60715 TH35, for transformer connection up to 1500 A. , 14 transformer ratios adjustable. S0 interface: (Pos. 1 + 2)
| Property | Value |
| Width in division units: | 4 |
| Calibrated: | no |
| Pole type: | Four-wire |
| Meter type: | electronic |
| Display type: | digital |
| Mounting type: | REG |
| Accuracy class: | B |
| Protection class (NEMA): | 1 |
| Maximum current (Imax): | 6 A |
| Nominal voltage (Un) NL: | 230 V |
| Pulse rate: | 10 Imp/kWh (kvarh) |
| Protection class (IP): | IP20 |
| Frequency: | 50 Hz |
| Tariff version: | Single tariff |
| Tariff control: | external |
| Energy type: | Active power |
| Nominal current (In): | 5 A |
| Design: | Measuring transformer |
| Measurement type load profile: | yes |
| EDL40 signature: | no |
| With lock code: | no |
| Pulse type: | S0 |
| Number of digits: | 7 |
| Suitable for: | Reference |
| Backstop: | yes |
| Approval: | Measuring Instruments Directive |
| Pulse output: | electrical |
| Interface design: | other |
Features
Maximum current (Imax)
6 A
Accuracy class
B
Manufacturer
HAN
7E.56.8.400.0010
GTIN
8012823347417
Version
Transducer
Implementation of the interface
Other
Width in pitch units
4
Frequency
50Hz
Suitable for
Relation
Mounting type
REG
Nominal current (In)
5A
IP protection)
IP20
Protection class (NEMA)
1
Permit
Measuring Instruments Directive
