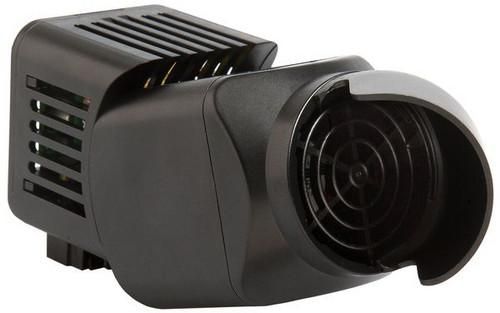

Built-in fan for control cabinet, air flow 27.6 m3/h, quick connections using duo pressure clamps, fastening type: clip for 35 mm DIN rail, in accordance with EN 60715. Joint can be swivelled by 40°, air duct can be rotated continuously by 360°. Material: plastic in accordance with UL94 VO, colour black. Operating voltage 100-240 V AC 50/60 Hz, rated power 4 W, protection class II (double insulated), protection type IP 20, ambient temperature -10...+60 degrees C.
| Property | Value |
| Rated power: | 4 W |
| Height: | 60 mm |
| Width: | 50 mm |
| Depth: | 136 mm |
| Type of voltage: | AC |
| With filter: | no |
| Operating voltage at AC 50 Hz: | 100 to 240 V |
| Operating voltage at AC 60 Hz: | 100 to 240 V |
| Volume flow, free blowing: | 27.6 m³/h |
| Suitable for 482.6 mm (19 inch) installation: | no |
| Circulation fan: | yes |
| Wall installation: | no |
| Carried out as a slide-in fan: | no |
| Number of fans: | 1 |
| Roof fan: | yes |
| EMC version: | no |
| Protection class (IP): | IP20 |
| Mounting type: | snap fastening |
| Color: | black |
| With protective cover: | yes |
| Protection class (NEMA): | 1 |
