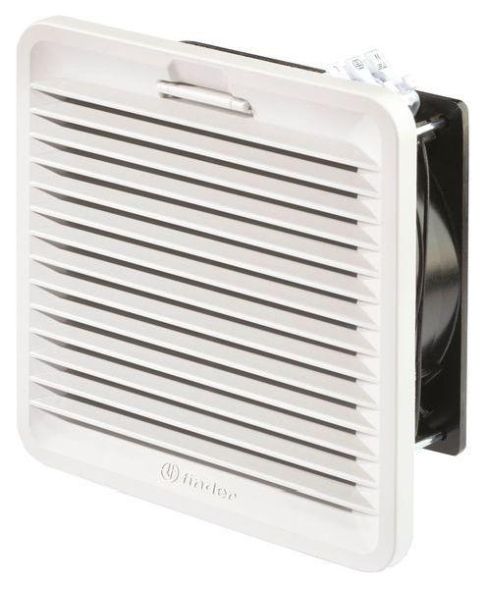

Filter fan for control cabinet, 250 m3/h, operating voltage 120 V, operating current 350 mA, rated power 42 W, size 4, mounting cutout 223 x 223, protection class IP 54, ambient temperature -15...+55 degrees C
| Property | Value |
| Rated power: | 45 W |
| Height: | 255 mm |
| Width: | 255 mm |
| Depth: | 90.2 mm |
| Voltage type: | AC |
| With filter: | yes |
| Operating voltage at AC 50 Hz: | 120 V |
| Operating voltage at AC 60 Hz: | 120 V |
| Volume flow, free blowing: | 250 m³/h |
| Suitable for 482.6 mm (19 inch) installation: | no |
| Circulation fan: | yes |
| Wall installation: | yes |
| Designed as a slide-in fan: | no |
| Number of fans: | 1 |
| Roof fan: | no |
| EMC version: | no |
| Protection class (IP): | IP54 |
| Mounting type: | snap fastening |
| Color: | gray |
| RAL number: | 7035 |
| With protective cover: | yes |
| Protection class (NEMA): | 3 |
Features
Operating voltage at AC 50 Hz
120 V
Operating voltage at AC 60 Hz
120 V
HAB
250 m3/h 42W
Manufacturer
HAN
7F.20.8.120.4250
GTIN
8012823433844
Width
255 mm
EMC version
No
Color
Height
255 mm
With protective cover
Yes
Mounting type
Snap fastening
RAL number
7035
IP protection)
IP54
Protection class (NEMA)
3
Voltage type
AC
Depth
90.2 mm
