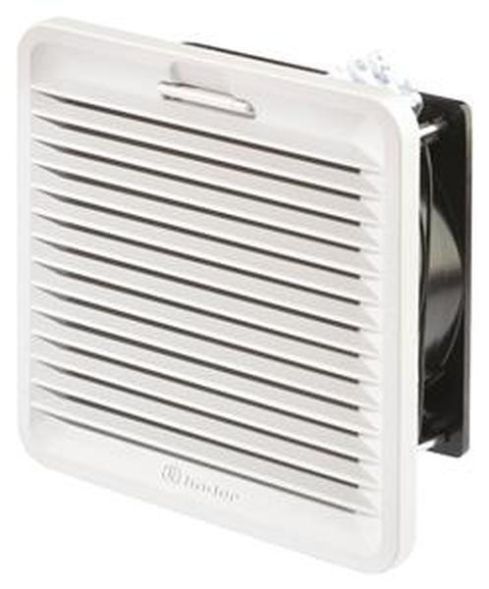

Filter fan for control cabinet, 250 m3/h, operating voltage 230 V, operating current 200 mA, rated power 46 W, size 4, mounting cutout 223 x 223, protection class IP 54, ambient temperature -15...+55 degrees C, air flow direction blowing
| Property | Value |
| Rated power: | 45 W |
| Height: | 255 mm |
| Width: | 255 mm |
| Depth: | 90.2 mm |
| Voltage type: | AC |
| With filter: | yes |
| Operating voltage at AC 50 Hz: | 230 V |
| Operating voltage at AC 60 Hz: | 230 V |
| Volume flow, free blowing: | 250 m³/h |
| Suitable for 482.6 mm (19 inch) installation: | no |
| Circulation fan: | yes |
| Wall installation: | yes |
| Designed as a slide-in fan: | no |
| Number of fans: | 1 |
| Roof fan: | no |
| EMC version: | no |
| Protection class (IP): | IP54 |
| Mounting type: | Snap-on fastening |
| Color: | gray |
| RAL number: | 7035 |
| With protective cover: | yes |
| Protection class (NEMA): | 3 |
Features
Operating voltage at AC 50 Hz
230 V
Operating voltage at AC 60 Hz
230 V
HAB
250 m3/h 46 W blowing
Manufacturer
HAN
7F.21.8.230.4250
GTIN
8012823433868
Width
255 mm
EMC version
No
Color
Height
255 mm
With protective cover
Yes
Mounting type
Snap fastening
RAL number
7035
IP protection)
IP54
Protection class (NEMA)
3
Voltage type
AC
Depth
90.2 mm
