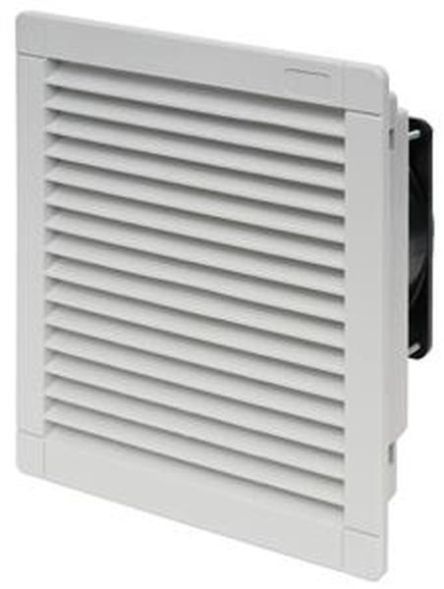

Filter fan for control cabinet, air flow 100 m3/h, operating voltage 24 V DC, operating current 370 mA, rated power 9 W, mounting cutout 177 x 177, protection class IP 54, ambient temperature -10...+70 degrees C.
| Property | Value |
| Rated power: | 9 W |
| Height: | 204 mm |
| Width: | 204 mm |
| Depth: | 97.5 mm |
| Voltage type: | DC |
| With filter: | yes |
| Operating voltage at DC: | 24 V |
| Volume flow, free blowing: | 100 m³/h |
| Suitable for 482.6 mm (19 inch) installation: | no |
| Circulation fan: | yes |
| Wall installation: | yes |
| Designed as a slide-in fan: | no |
| Number the fan: | 1 |
| Roof fan: | no |
| EMC version: | no |
| Protection class (IP): | IP54 |
| Mounting type: | Screw fastening |
| Color: | gray |
| RAL number: | 7035 |
| With protective cover: | yes |
| Protection class (NEMA): | 3 |
