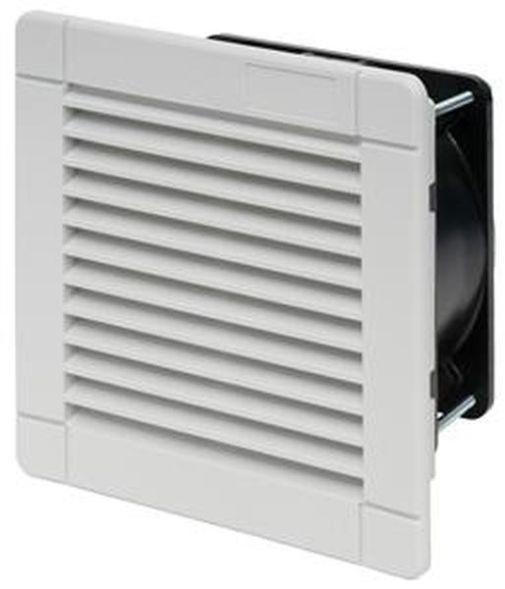

EMC filter fan for control cabinet, air flow 55 m3/h, operating voltage 230 V, operating current 140 mA, rated power 22 W, mounting cutout 125 x 125, protection class IP 54, ambient temperature -10...+70 degrees C.
| Property | Value |
| Rated power: | 22 W |
| Height: | 150 mm |
| Width: | 150 mm |
| Depth: | 76.5 mm |
| Voltage type: | AC |
| With filter: | yes |
| Operating voltage at AC 50 Hz: | 230 V |
| Operating voltage at AC 60 Hz: | 230 V |
| Volume flow, free blowing: | 55 m³/h |
| Suitable for 482.6 mm (19 inch) installation: | no |
| Circulation fan: | yes |
| Wall installation: | yes |
| Designed as a slide-in fan: | no |
| Number of fans: | 1 |
| Roof fan: | no |
| EMC version: | yes |
| Protection class (IP): | IP54 |
| Mounting type: | screw fastening |
| Color: | gray |
| RAL number: | 7035 |
| With protective cover: | yes |
| Protection class (NEMA): | 3 |
Features
Operating voltage at AC 50 Hz
230 V
Operating voltage at AC 60 Hz
230 V
Manufacturer
HAN
7F.70.8.230.2055
GTIN
8012823367248
Width
150 mm
EMC version
Yes
Color
Height
150 mm
With protective cover
Yes
Mounting type
Screw fastening
RAL number
7035
IP protection)
IP54
Protection class (NEMA)
3
Voltage type
AC
Depth
76.5 mm
