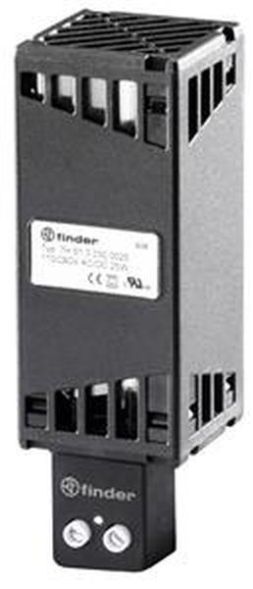

Heater for control cabinet, without fan heater, heating output 25 W, operating voltage 110...230 V AC/DC, nominal current 0.13 A, touch-safe, with PTC heating resistor, clip for mounting rail 35 mm, protection class IP 20, ambient temperature -45...+50 degrees C
| Property | Value |
| Operating voltage at AC 60 Hz: | 110 to 230 V |
| Operating voltage at AC 50 Hz: | 110 to 230 V |
| Operating voltage at DC: | 110 to 230 V |
| Voltage type: | AC/DC |
| Protection class (IP): | IP20 |
| With room thermostat: | no |
| Width: | 41 mm |
| Height: | 125 mm |
| Depth: | 41 mm |
| Rated power: | 25 W |
| With fan: | no |
| Protection class (NEMA): | 1 |
Features
Operating voltage at AC 50 Hz
110 to 230 V
Operating voltage at AC 60 Hz
110 to 230 V
Operating voltage at DC
110 to 230 V
HAB
Heating power 25W for 110-230V AC/DC
Manufacturer
HAN
7H.51.0.230.0025
GTIN
8012823401478
Width
41 mm
Height
125 mm
With room thermostat
No
IP protection)
IP20
Protection class (NEMA)
1
Voltage type
AC/DC
Depth
41 mm
