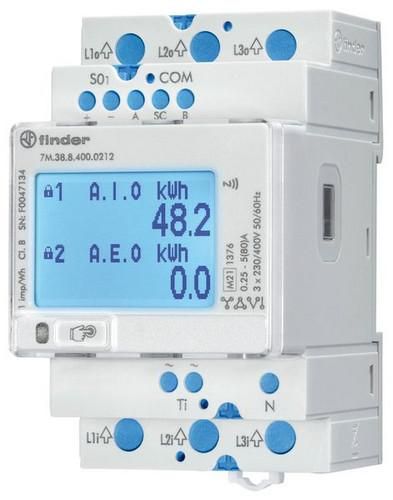

Electronic 3-phase multifunction energy meter for 2 tariffs with Modbus and S0 interface, bidirectional, for 3-phase current, can also be used single-phase up to 80A, with dot matrix LCD display, backlit, for 3- or 4-wire systems, display of total consumption, partial consumption (resettable) kWh, kVAh, kvar - for tariff 1 and tariff 2, for all 3 phases or for each phase, instantaneous values V, A, power factor, kW, kVA, kvar, frequency and current direction. LED consumption display: 1000 pulses per kWh, maximum current 80 A, short-time overcurrent (pulse current): 2400 A for 10 ms, starting current: 0.02 A, accuracy class B, modular installation device for 35 mm mounting rail (EN 60715), width 52.5 mm, nominal voltage 3 x 230 V AC, Modbus interface: transmission rates: 1200 to 115200 baud. S0 interface: 500 pulses per kWh, NFC and IR communication interface, meter is MID-compliant, connection cross-sections main circuit: single-wire 1.5 to 16 mm², multi-wire 1.5 to 25 mm², ambient temperature: -25 to + 70°C, protection class housing/connections: IP50/IP20, terminal cover for sealing
| Property | Value |
| Width in division units: | 3 |
| Calibrated: | yes |
| Pole type: | three-wire/four-wire |
| Meter type: | electronic |
| Display type: | digital |
| Mounting type: | REG |
| B | |
| Protection class (NEMA): | 1 |
| Maximum current (Imax): | 80 A |
| Nominal voltage (Un) NL: | 230 V |
| Pulse rate: | 5 00 Imp/kWh (kvarh) |
| Protection class (IP): | IP20 |
| Frequency: | 50 to 60 Hz |
| Tariff design: | Two-tariff |
| Tariff control: | external |
| Energy type: | Active and reactive power |
| Nominal current (In): | 5 A |
| Version: | Direct measurement |
| Measurement type load profile: | no |
| EDL40 signature: | no |
| With lock code: | yes |
| Pulse type: | S0 |
| Nominal voltage (Un) LL: | 400 V |
| Number of digits: | 8 |
| Suitable for: | Purchase/delivery |
| Backstop: | no |
| Approval: | Measuring Instruments Directive |
| Pulse output: | electrical |
| Interface design: | Modbus |
