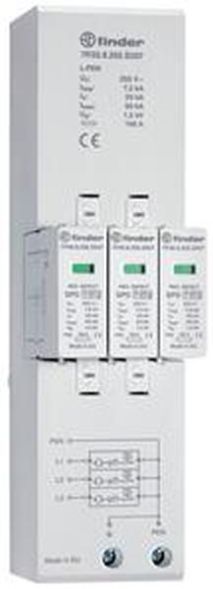

Lightning and surge arrester type 1+2 for 40 mm busbar, 7.5 kA per path, 4-wire system, L1, L2, L3, PEN, exchangeable modules, optical defect indicator, holding system for the modules, can be used for the discharge of lightning currents up to 7.5 kA per pole, installation in the pre-meter area at the interface of zones LPZ 0 to LPZ 1, without leakage current and follow current
| Property | Value |
| Lightning impulse current (10/350 µs): | 7.5 kA |
| Nominal discharge current (8/20): | 20 kA |
| Highest continuous voltage AC: | 255 V |
| Nominal voltage AC: | 230 V |
| Protection level: | 1.5 kV |
| Mounting type: | Busbar |
| Size: | 3 TE |
| With remote signaling contact: | no |
| Blowing out: | no |
| Signaling on the device: | optical |
| Test class type 1: | yes |
| Network type DC: | no |
| Suitable for outdoor use: | no |
| Network type TT: | no |
| Network type TN-CS: | no |
| Integrated back-up fuse: | no |
| Network type TN-S: | no |
| Max. Conductor cross-section, rigid (single/multi-wire): | 35 mm² |
| Max. Conductor cross-section flexible (fine-stranded): | 25 mm² |
| Network type other: | no |
| Network type TN: | no |
| Network type TN-C: | yes |
| Network type IT: | no |
| Number of conductors (without earth): | 3 |
| Protection class (IP): | IP20 |
Features
Max. conductor cross-section rigid (single/multi-wire)
35 mm²
Max. conductor cross-section flexible (fine-stranded)
25 mm²
Lightning surge current (10/350 µs)
7.5 kA
Protection level
1.5 kV
With remote signaling contact
No
Number of conductors (excluding earth)
3
Network form TT
No
Network type TN-S
No
Network form TN
No
Network type TN-C
Yes
Network type TN-C-S
No
Network type DC
No
Integrated backup fuse
No
Network type IT
No
HAB
Type 1+2 for three-phase TN-C networks 7.5kA
Manufacturer
HAN
7P.03.8.255.S007
GTIN
8012823429731
Size
3 HP
Suitable for outdoor use
No
Highest continuous voltage AC
255V
Mounting type
Busbar
Nominal discharge current (8/20)
20kA
Nominal voltage AC
230V
IP protection)
IP20
Signaling on the device
Optical
