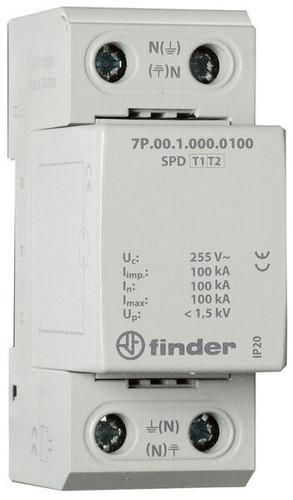

Surge arrester type 1, compact device, total current spark gap can be used between N - PE, must be supplemented by 1 or 3 pieces of type 7P.01.8.260.1025 in 1- and 3-phase networks, width 36 mm.
| Property | Value |
| Protection level: | 1.5 kV |
| Nominal discharge current (8/20): | 100 kA |
| Highest continuous voltage AC: | 255 V |
| Mounting type: | DIN rail TH35 |
| Size: | 2 TE |
| With remote signaling contact: | no |
| Test class type 2: | no |
| Max. conductor cross-section flexible (fine-stranded): | 1.5 mm² |
| Max. Conductor cross-section rigid (single/multi-wire): | 1.5 mm² |
| Protection level N-PE: | 1.5 kV |
| Integrated backup fuse: | no |
| Protection class (IP): | IP20 |
Features
Max. conductor cross-section rigid (single/multi-wire)
1.5 mm²
Max. conductor cross-section flexible (fine-stranded)
1.5 mm²
Protection level
1.5 kV
With remote signaling contact
No
Test class type 2
No
Protection level N-PE
1.5 kV
Integrated backup fuse
No
Manufacturer
HAN
7P.09.1.255.0100
GTIN
8012823354286
Size
2 HP
Highest continuous voltage AC
255V
Mounting type
DIN rail TH35
Nominal discharge current (8/20)
100kA
IP protection)
IP20
