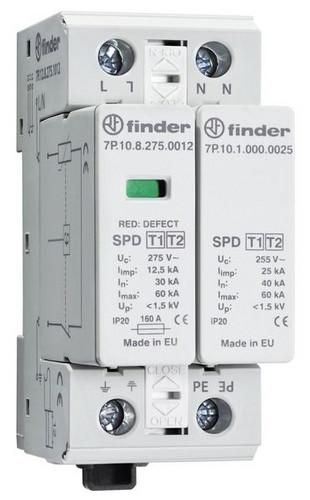

Surge arrester type 1+ 2, plug-in modules, varistor between L - N and spark gap between N - PE, for 1-phase TN-S and TT networks, width 35.8 mm.
| Property | Value |
| Highest continuous voltage AC: | 275 V |
| Lightning impulse current (10/350 µs): | 12.5 kA |
| Test class: | Type 1 and 2 |
| Number of poles: | 2 |
| Nominal voltage AC: | 230 V |
| Blow-out: | no |
| Size: | 2 TE |
| Remote signaling: | yes |
| Signaling on the device: | optical |
| Network type TN-CS: | no |
| Network type DC: | no |
| Network type TN: | no |
| Highest continuous voltage DC: | 350 V |
| Energetically coordinated protective effect on the end device: | yes |
| Mounting type: | DIN rail TH35 |
| Protection level N-PE: | 1.5 kV |
| Network type TT: | yes |
| Integrated back-up fuse: | no |
| Max. conductor cross-section rigid (single/multi-wire): | 35 mm² |
| Max. Conductor cross-section flexible (fine-stranded): | 25 mm² |
| Network type other: | no |
| Protection level LN: | 1.2 kV |
| Network type TN-C: | no |
| Network type IT: | no |
| Network type TN-S: | yes |
| Protection class (IP): | IP20 |
Features
Max. conductor cross-section rigid (single/multi-wire)
35 mm²
Max. conductor cross-section flexible (fine-stranded)
25 mm²
Lightning surge current (10/350 µs)
12.5 kA
Highest continuous voltage DC
350 V
Network form TT
Yes
Network type TN-S
Yes
Network form TN
No
Network type TN-C
No
Network type TN-C-S
No
Protection level L-N
1.2 kV
Network type DC
No
Protection level N-PE
1.5 kV
Integrated backup fuse
No
Network type IT
No
Manufacturer
HAN
7P.12.8.275.1012
GTIN
8012823354163
Size
2 HP
Highest continuous voltage AC
275V
Mounting type
DIN rail TH35
Nominal voltage AC
230V
Number of poles
2
IP protection)
IP20
Signaling on the device
Optical
