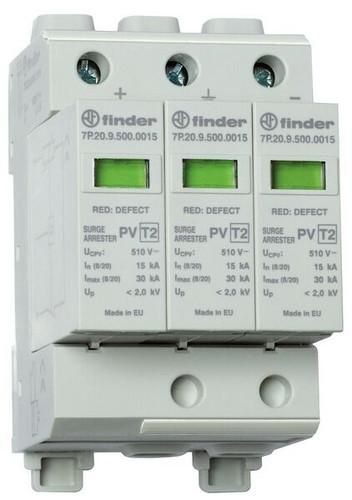

Surge arrester type 2, for photovoltaic systems up to 1020 V DC, Y-circuit, varistors pluggable, connections at the top, requirements and tests according to EN 50539-11, width 53.8 mm.
| Property | Value |
| Protection level: | 2 kV |
| Nominal discharge current (8/20): | 15 kA |
| Mounting type: | DIN rail TH35 |
| Size: | 3 TE |
| Signaling on the device: | optical |
| With remote signaling contact: | yes |
| Test class type 2: | yes |
| Max. Flexible conductor cross-section (fine-wire): | 1.5 mm² |
| Max. PV voltage: | 1020 V |
| Max. Conductor cross-section rigid (single/multi-wire): | 1.5 mm² |
| Integrated fuse: | no |
| Protection class (IP): | IP20 |
Features
Max. conductor cross-section rigid (single/multi-wire)
1.5 mm²
Max. conductor cross-section flexible (fine-stranded)
1.5 mm²
Protection level
2 kV
With remote signaling contact
Yes
Test class type 2
Yes
Integrated backup fuse
No
Manufacturer
HAN
7P.23.9.000.1015
GTIN
8012823368498
Size
3 HP
Mounting type
DIN rail TH35
Nominal discharge current (8/20)
15kA
IP protection)
IP20
Signaling on the device
Optical
