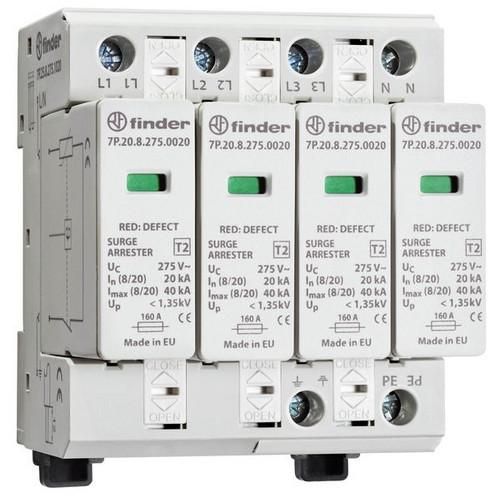

Surge arrester type 2, modules exchangeable, between L1, L2, L3, N - PE, for 3-phase TN-S networks, varistor defect indication by red in the viewing window, remote signaling contact, width 71.8 mm
| Property | Value |
| Protection level: | 1.2 kV |
| Nominal discharge current (8/20): | 20 kA |
| Highest continuous voltage AC: | 275 V |
| Highest continuous voltage DC: | 350 V |
| Nominal voltage AC: | 230 V |
| Mounting type: | DIN rail TH35 |
| Size: | 4 TE |
| Signaling on the device: | optical |
| With remote signaling contact: | yes |
| Test class type 2: | yes |
| Max. conductor cross-section flexible (fine-stranded): | 25 mm² |
| Max. Conductor cross-section rigid (single/multi-wire): | 35 mm² |
| Protection level N-PE: | 1.2 kV |
| Integrated backup fuse: | no |
| Protection class (IP): | IP20 |
| Network type DC: | no |
| Network type IT: | no |
| Network type TN: | no |
| Network type TN-C: | no |
| Network type TN-CS: | no |
| Network type TN-S: | yes |
| Network type TT: | no |
| Network type other: | no |
| Number of conductors (without earth): | 4 |
| Short-circuit strength (Isccr): | 50 kA |
| Max. discharge current (8/20): | 40 kA |
Features
Max. conductor cross-section rigid (single/multi-wire)
35 mm²
Max. conductor cross-section flexible (fine-stranded)
25 mm²
Protection level
1.2 kV
With remote signaling contact
Yes
Highest continuous voltage DC
350 V
Number of conductors (excluding earth)
4
Network form TT
No
Network type TN-S
Yes
Max. discharge current (8/20)
40 kA
Test class type 2
Yes
Network form TN
No
Network type TN-C
No
Network type TN-C-S
No
Short circuit strength (Isccr)
50 kA
Network type DC
No
Protection level N-PE
1.2 kV
Integrated backup fuse
No
Network type IT
No
Manufacturer
HAN
7P.25.8.275.1020
GTIN
8012823334714
Size
4 HP
Highest continuous voltage AC
275V
Mounting type
DIN rail TH35
Nominal discharge current (8/20)
20kA
Nominal voltage AC
230V
IP protection)
IP20
Signaling on the device
Optical
