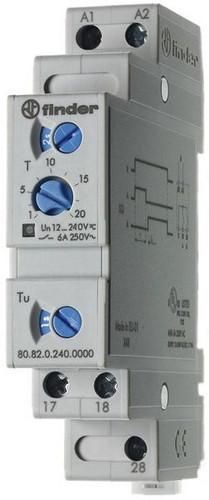

Star-delta relay, changeover time 50..60 ms, for DIN rail, 17.5 mm wide, 2 NO contacts for 6 A / 250 V AC, contact material AgNi, time range: 0.05 s - 20 min, supply voltage: 24 ...240 V AC(50/60 Hz)/DC, relay protection class: IP 20
| Property | Value |
| Number of outputs, delayed, NO contacts: | 2 |
| Design of the electrical connection: | screw connection |
| Can be plugged onto contactor: | no |
| Outputs, switchable delayed/undelayed: | no |
| Voltage type for actuation: | AC/DC |
| Time range: | 0.1 to 1200 s |
| Rated control supply voltage Us at AC 50 Hz: | 24 to 240 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 to 240 V |
| Rated control supply voltage Us at DC: | 24 to 240 V |
| Width: | 17.5 mm |
| Depth: | 60.8 mm |
| Height: | 88.8 mm |
| With plug-in base: | no |
| Remote control possible: | no |
| Suitable as remote control: | no |
| On-delay function: | no |
| Off-delay function: | no |
| Function, flicker-on: | no |
| Function, flicker-off: | no |
| Function, star/delta: | yes |
| Function, pulse-forming: | no |
| Function, flashing, starting with a pause, fixed time: | no |
| Function, flashing, starting with a pulse, fixed time: | no |
| Function, clocking, starting with a pause, variable: | no |
| Function clocked starting with pulse, variable: | no |
| With semiconductor output: | no |
| Rated current: | 6 A |
| Suitable for DIN rail mounting: | yes |
| Suitable for front mounting: | no |
Features
Manufacturer
HAN
80.82.0.240.0000
GTIN
8012823290652
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
24 to 240 V
Rated control supply voltage Us at AC 60 Hz
24 to 240 V
Rated control supply voltage Us at DC
24 to 240 V
Width
17.5 mm
Remote control possible
No
Suitable for DIN rail mounting
Yes
Height
88.8 mm
Rated current
6A
Voltage type for actuation
AC/DC
Depth
60.8 mm
