Description

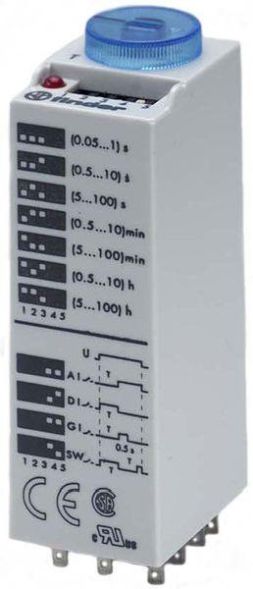

Plug-in miniature MF time relay 3 changeover contacts for 10 A / 250 V AC, for socket 94.03 Contact material AgNi, Functions: Response delay, switch-on pulse, pulse relay (flasher) symmetrical, pulse starting, pulse generator (0.5 s) Time range: 0.05 s - 100 h, Supply voltage 240 V AC (50/60 Hz) Relay protection class: IP 20
| Property | Value |
| Number of outputs, delayed, changeover contact: | 3 |
| Design of the electrical connection: | Plug connection |
| Can be plugged onto contactor: | no |
| Outputs, switchable delayed/undelayed: | no |
| Type of voltage for actuation: | AC |
| Time range: | 0.05 to 360000 s |
| Rated control supply voltage Us at AC 50 Hz: | 240 V |
| Rated control supply voltage Us at AC 60 Hz: | 240 V |
| Width: | 20.6 mm |
| Depth: | 63.1 mm |
| Height: | 27.7 mm |
| With plug-in base: | no |
| Remote control possible: | no |
| Suitable as remote control: | no |
| On-delay function: | yes |
| Off-delay function: | no |
| Swivel-on function: | yes |
| Function with flickering when switched off: | no |
| Function with star/delta: | no |
| Function with pulse shaping: | yes |
| Function with flashing starting with pause, fixed time: | no |
| Function with flashing starting with pulse, fixed time: | yes |
| Function with clocking starting with pause, variable: | no |
| Function with clocking starting with pulse, variable: | no |
| With semiconductor output: | no |
| Rated current: | 10 A |
| Suitable for DIN rail mounting: | no |
| Suitable for front mounting: | no |
Features
HAB
85.03.8.240.0000
Manufacturer
HAN
85.03.8.240.0000
GTIN
8012823275673
Design of the electrical connection
Plug connection
Rated control supply voltage Us at AC 50 Hz
240V
Rated control supply voltage Us at AC 60 Hz
240V
Width
20.6 mm
Remote control possible
No
Suitable for DIN rail mounting
No
Height
27.7 mm
Rated current
10A
Voltage type for actuation
AC
Depth
63.1 mm
