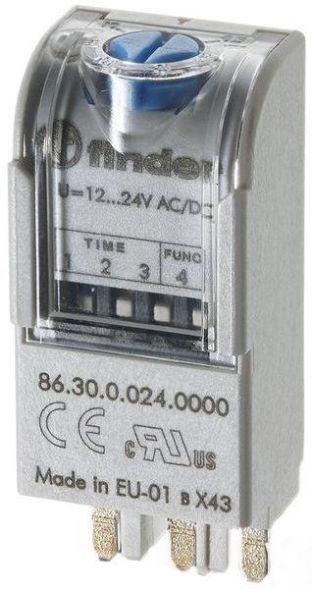

Multifunctional time module, response delay and switch-on pulse for sockets 90.02/.03, 96.02/04,97.01/.02, 97.51/.52, time range: 0.05 s - 100 h, supply voltage: 12-24 V DC/AC (50/60 Hz), relay protection class: IP 20, special version for railway applications.
| Property | Value |
| Design of the electrical connection: | Plug connection |
| Can be plugged onto contactor: | no |
| Outputs, switchable delayed/undelayed: | no |
| Voltage type for actuation: | AC/DC |
| Time range: | 0.05 to 360000 s |
| Rated control supply voltage Us at AC 50 Hz: | 12 to 24 V |
| Rated control supply voltage Us at AC 60 Hz: | 12 to 24 V |
| Rated control supply voltage Us at DC: | 12 to 24 V |
| Width: | 15.5 mm |
| Depth: | 11.3 mm |
| Height: | 31 mm |
| With plug-in base: | no |
| Remote control possible: | no |
| Suitable as remote control: | no |
| On-delay function: | yes |
| Off-delay function: | no |
| Swivel-on function: | yes |
| Function with flickering when switched off: | no |
| Function with star/delta: | no |
| Function with pulse shaping: | no |
| Function with flashing starting with pause, fixed time: | no |
| Function with flashing starting with pulse, fixed time: | no |
| Function with clocking starting with pause, variable: | no |
| Function with clocking starting with pulse, variable: | no |
| With semiconductor output: | no |
| Rated current: | 16 A |
| Suitable for DIN rail mounting: | no |
| Suitable for front mounting: | no |
Features
HAB
86.30.0.024.0000T
Manufacturer
HAN
86.30.0.024.0000T
GTIN
8012823355146
Design of the electrical connection
Plug connection
Rated control supply voltage Us at AC 50 Hz
12 to 24 V
Rated control supply voltage Us at AC 60 Hz
12 to 24 V
Rated control supply voltage Us at DC
12 to 24 V
Width
15.5 mm
Remote control possible
No
Suitable for DIN rail mounting
No
Height
31 mm
Rated current
16A
Voltage type for actuation
AC/DC
Depth
11.3 mm
