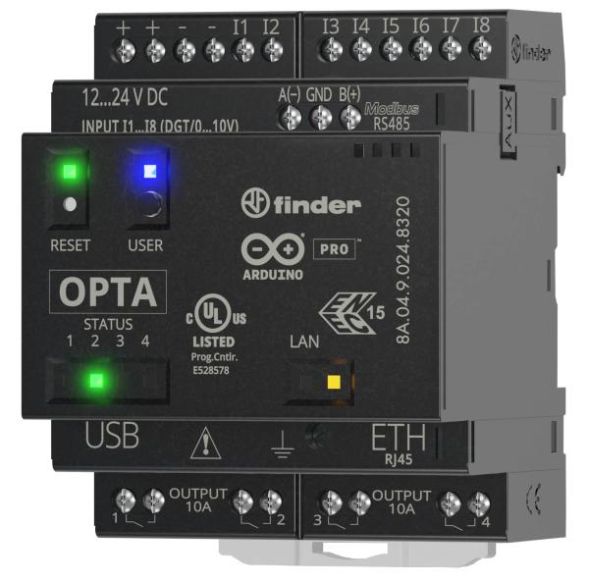

Finder 8A.04.9.024.8320 OPTA Advanced Series 8A Logic Relay
OPTA ADVANCED. A range of simple and stand-alone PROGRAMMABLE LOGIC RELAYS ideal for simple applications in industrial automation, OEM and building automation IoT. Programmable with conventional programming languages (ladder logic) as well as with innovative open source programming languages (IDE / ARDUINO). The powerful dual-core Cortex M7 + M4 chip enables a high number of calculations in real time. Thanks to a high-end integrated secure element chip, you can manage encryption and data keys in all types of applications. Supply voltage 12...24 V DC, 8 analog/digital (0-10 V/ 12-24 V) inputs, 4 relay outputs (normally open, 10A), USB (Type C) high-speed connection for programming and power supply during configuration, data acquisition (via storage medium), RJ45 Ethernet (Modbus TCP/IP) connection, RS485 port for MODBUS RTU connection and integrated WIFI/BLE module.
Functions and features:
Finder's industrial know-how is combined with the open source innovation of Arduino Pro. Opta is the first programmable logic relay as reliable as a Finder industrial relay. Innovative and connected to Ethernet, Wi-Fi network, Bluetooth® Low Energy technology. Programmable without licenses with Arduino IDE or programming languages such as LADDER, FBD or IEC/EN 61131. Thanks to an integrated secure element chip, it guarantees the highest IoT security.
Technical properties
Nominal voltage 12…24 V
8 digital/analog inputs
4 relay outputs 10 A
Connection option for additional modules
Powerful CPU (STM32H747XI dual-core CORTEX®-M7+M4 MCU)
Increased IoT security thanks to the secure element chip
Available in 3 versions
LITE – 8A.04.9.024.8300
Lite version
USB port
RJ45 port for Ethernet and Modbus TCP/IP
PLUS – 8A.04.9.024.8310
Plus version
USB port
RJ45 connection for Ethernet and Modbus TCP/IP
Modbus RS485 connection
ADVANCED – 8A.04.9.024.8320
Advanced version
USB port
RJ45 connection for Ethernet and Modbus TCP/IP
Modbus RS485 connection
Integrated Wi-Fi/BLE module
Applications:
Pump control
Control and monitoring in water treatment plants
Packaging machines
Switch cabinets for electrical distribution
Air conditioning systems
Building automation
Exhaust air and recirculation -tventilatoren
| Property | Value |
| Output digital: | 4 |
| Input analog: | 8 |
| Input digital: | 8 |
| Voltage DC: | 12 to 24 V |
| Protection class (IP): | IP20 |
| Switching current: | 10 A |
| Height: | 84 mm |
| Width: | 70 mm |
| Depth: | 57 mm |
| Number of HW interfaces USB: | 1 |
| With Relay output: | yes |
| Voltage type: | AC/DC |
| Expandable: | no |
| With timer: | no |
| With display: | no |
| Wall/direct mounting possible: | no |
| Front installation possible: | no |
| Rail mounting possible: | yes |
| Rack mounting possible: | no |
| Wireless standard Bluetooth: | yes |
| Wireless standard WLAN 802.11: | yes |
| Suitable for safety functions: | no |
| Basic device: | yes |
| Extension device: | no |
| IO-Link Master: | no |
| With optical interface: | no |
| Supports protocol for SERCOS: | no |
| Supports protocol for DeviceNet Safety: | no |
| Supports protocol for PROFINET IO: | no |
| Supports protocol for INTERBUS: | no |
| Supports protocol for AS-Interface Safety at Work: | no |
| Supports protocol for PROFIBUS: | no |
| Supports protocol for SafetyBUS p: | no |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for Data-Highway: | no |
| Supports protocol for DeviceNet: | no |
| Supports protocol for EtherNet/IP: | yes |
| Supports protocol for TCP/IP: | yes |
| Supports protocol for other bus systems: | no |
| Supports protocol for Modbus: | yes |
| Supports protocol for SUCONET: | no |
| Supports protocol for CAN: | no |
| Supports protocol for ASI: | no |
| Supports protocol for PROFINET CBA: | no |
| Supports protocol for KNX: | no |
| Supports protocol for LON: | no |
| Supports protocol for Foundation Fieldbus: | no |
| Supports protocol for INTERBUS-Safety: | no |
| Number of HW interfaces Wireless: | 1 |
| Number of HW interfaces Industrial Ethernet: | 1 |
| Number of HW interfaces serial RS-485: | 1 |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Redundancy capability: | no |
| Radio standard GPRS: | no |
| SIL according to IEC 61508: | without |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
