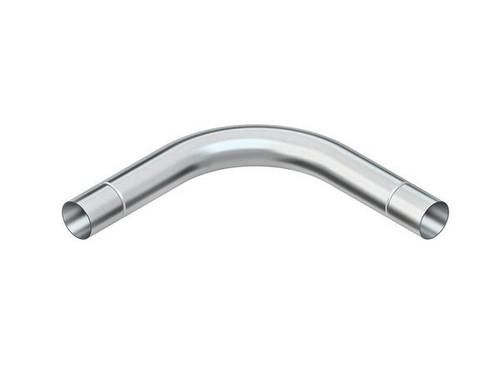

Plug-in pipe bend 90° according to DIN EN 61386-1 / DIN EN 61386-21, for producing plug-in 90° corner connections of plug-in and socket pipes, can be used for extreme mechanical requirements and firm connections due to very heavy compressive strength and high temperature resistance, very high corrosion resistance. for plug-in pipe: IESR ... E3, ... E5 for socket pipe-fm: FM-MR ... E3, ... E5 Dimensions (approx. dimensions) for pipe Ø: 25 mm Inside Ø Di: 22 mm Material thickness t: 1 mm Inside radius Ri: 70 mm Classification: 5557 for very heavy mechanical stress Surface: bright Material: stainless steel, material no. 1.4571
| Property | Value |
| Diameter: | 22 mm |
| Design: | Plug-in |
| Material: | Metal |
| Surface: | other |
| Surface polished: | no |
| Halogen-free: | yes |
| With inspection opening and cover: | no |
| For Nominal pipe diameter: | 25 mm |
| Two-part: | no |
| Brushed surface: | no |
| Quality of surface coating: | other |
| Flexible: | no |
| Angle of the bend: | 90 ° |
Features
HAB
For pipe 25mm 1.4571 V4A
Manufacturer
HAN
IESB 25 E5
GTIN
4046933002830
Version
Plug
Diameter
22 mm
Flexible
No
Halogen free
Yes
Surface
Other
Brushed surface
No
Material
Metal
