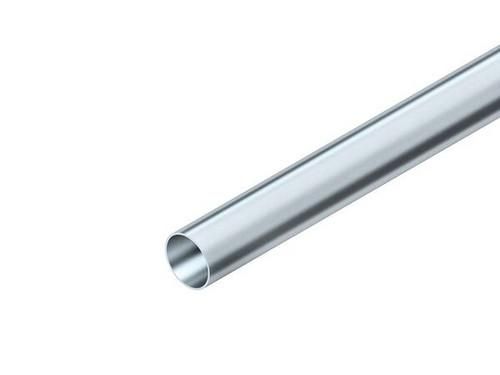

Plug-in pipe according to DIN EN 61386-1 / DIN EN 61386-21, can be used for extreme mechanical requirements and fixed connections due to very heavy compressive strength and high temperature resistance, very high corrosion resistance. Dimensions (approx. dimensions) Pipe Ø outside: 50 mm Inner Ø Di: 47 mm Material thickness t: 1.5 mm Delivery length L: 3000 mm Usable cross-section: 1734 mm² Classification: 5557 for very heavy mechanical stress Surface: brushed Material: stainless steel, material no. 1.4571
| Property | Value |
| Outer diameter: | 50 mm |
| Inner diameter: | 47.4 mm |
| Material: | stainless steel |
| Material quality: | other |
| Surface: | other |
| Quality of surface coating: | other |
| Surface polished: | no |
| Surface brushed: | no |
| Surface mounted: | yes |
| Suitable for concrete installation: | yes |
| Machinery and plant installation: | yes |
| Underfloor installation (bitumen, hot asphalt): | no |
| Underfloor installation (screed): | no |
| Installation outdoors: | yes |
| Installation on wood: | yes |
| Operating temperature: | -45 to 400 °C |
Features
Inner diameter
47.4 mm
HAB
IESR50E5 Material No.: 1.4571 V4A
Minimal order
3 meter
Manufacturer
HAN
IESR 50 E5
GTIN
4046933001956
Outer diameter
50 mm
Operating temperature
-45 to 400 °C
Surface
Other
Brushed surface
No
Material
Stainless steel
Material quality
Other
