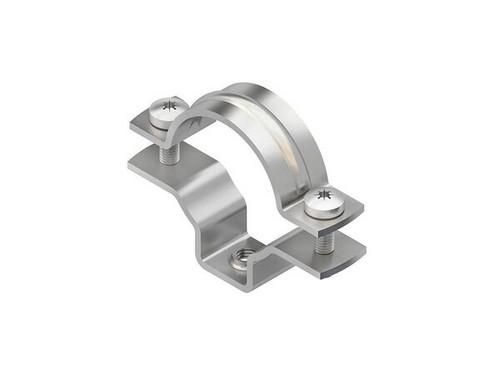

Pipe and cable spacer clamp, with internal connection thread M 6, for electrical installation pipes in accordance with DIN EN 61386-21, for screwing onto screw dowels with a thread length of up to 8 mm, for fastening plug-in pipes and socket pipes made of stainless steel to a flat wall / ceiling. for plug-in pipes: IESR ... E3, ... E5 for socket pipes-fm: FM-MR ... E3, ... E5 Dimensions (approx. dimensions) W x L: 16 x 79.5 mm Internal connection thread: M 6 for clamping range Ø: 38 - 47 mm for pipe Ø: 40 mm Surface: bright Complete material: stainless steel, material no. 1.4571
| Property | Value |
| Material: | stainless steel |
| Diameter: | 38 to 47 mm |
| Surface: | other |
| Nominal diameter: | 40 mm |
| Halogen-free: | yes |
| Fastening type: | threaded connection |
| Design: | two-lobed |
| Number of cables/pipes: | 1 |
| Suitable for fire protection areas: | no |
| UV-resistant: | yes |
| Material quality: | stainless steel (V4A) |
| Distance from the wall: | yes |
| Plastic-coated: | no |
Features
HAB
For pipe M40 clamping range: 38-47mm stainless steel
Minimal order
20 pcs
Manufacturer
HAN
IPA 40 G E5
GTIN
4046933001598
Version
Two-lobed
Mounting type
Threaded connection
Diameter
38 to 47 mm
Halogen free
Yes
Nominal diameter
40 mm
Surface
Other
UV-resistant
Yes
Material
Stainless steel
Material quality
Stainless steel (V4A)
