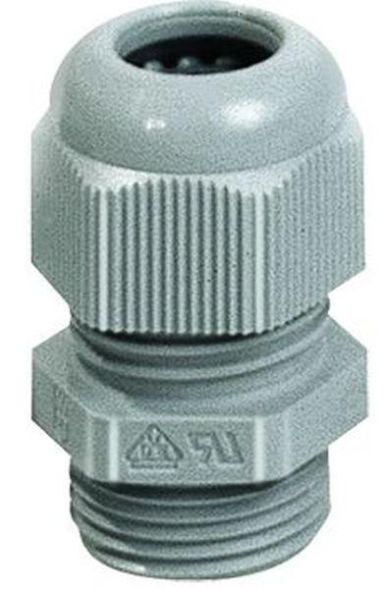

Cable gland KSK-P, IP 68, up to 5 bar integrated seal, PG external thread Material: polyamide / seal Perbunan, color: gray (also available in black) Temperature range: -20°C ... +100°C ^ +130°C Properties: resistant to weak acids and alkalis / resistant to sea water, gasoline and mineral oil
| Property | Value |
| Wrench size: | 33 mm |
| Nominal thread size metric/PG: | 21 |
| Suitable for cable diameters: | 13 to 18.0 mm |
| Protection class (IP): | IP58 |
| Operating temperature: | -20 to +100 °C |
| Halogen-free: | yes |
| Thread length: | 11.0 mm |
| Thread type: | PG |
| Design: | straight |
| Color: | light gray |
| Material: | plastic |
| With strain relief: | no |
| Surface: | untreated |
| Type of seal: | Sealing ring |
| Impact resistant: | yes |
| Bending protection: | no |
| Material quality: | Polyamide (PA) |
| Glass fibre reinforced: | no |
| With lock nut: | no |
| Multiple sealing inserts: | no |
| Flat cable gland: | no |
| Dividable gland: | no |
| Explosion-tested version: | no |
| Snaps into opening: | no |
| For armored cables: | no |
| EMC version: | no |
| Shielded: | no |
Features
Impact resistant
Yes
Explosion-tested version
No
Nominal thread size metric/PG
21
Fiberglass reinforced
No
Shielded
No
Suitable for cable diameter
13 to 18.0 mm
Wrench size
33 mm
HAB
KSK-PPG21 grey
Minimal order
50 pcs
Manufacturer
HAN
10321000021
GTIN
4025113108432
Version
Straight
EMC version
No
Operating temperature
-20 to +100 °C
Color
Thread type
PG
Thread length
11.0 mm
Halogen free
Yes
With strain relief
No
Surface
Untreated
IP protection)
IP58
Material
Plastic
Material quality
Polyamide (PA)
