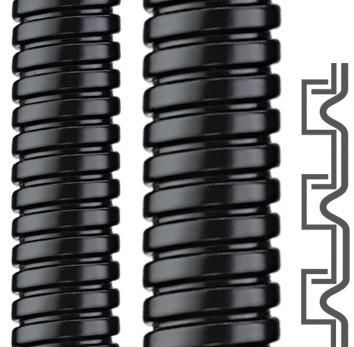

Metal protection hose SPR-PA, rings, IP 68 spiral-wound metal hose, S-profile, PA jacket Material: galvanized steel / polyurethane (PA), color: black Temperature range: -50°C ... +120°C ^ +150°C Approvals: VDE-tested according to EN 61386-23 / Gost Properties: flexible / liquid-tight / tensile strength / silicone-, cadmium-, halogen-free / oil and petrol-resistant / can withstand transverse pressure Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems
| Property | Value |
| Nominal diameter: | 45.0 mm |
| Surface: | galvanized |
| Sheathing material 1st layer: | Polyamide (PA) |
| Sheathing material 2nd layer (outer): | without sheath |
| Approval according to DIN EN 61386-23: | yes |
| Nominal size in inches: | 1 1/4 inch |
| Inner diameter: | 38.0 mm |
| Outer diameter: | 45.0 mm |
| Seal: | without seal |
| Compressive strength: | 1250 N |
| Operating temperature: | -50 to +120 °C |
| Tensile strength: | 500 N |
| Bending radius, static: | 120 mm |
| Weight: | 0.680 kg/m |
| Colour: | black |
| Hanging load: | 150 N |
| Electrical properties: | with Insulation properties |
| Flame propagating: | no |
| Use in Ex areas: | no |
| Approval according to BWB: | no |
| Approval according to VDE-EMV/emc: | no |
| Approval according to FI: | no |
| With approval according to UL: | no |
| Approval according to CSA: | no |
| Material: | Steel |
| Protection class (IP): | IP68 |
| Bending behavior: | flexible |
Features
Inner diameter
38.0 mm
Use in Ex area
No
Bending radius, static
120 mm
Bending behavior
Flexibel
Flame propagating
No
HAB
SPR-PA AD45 38x45mm black
Minimal order
25 meters
Manufacturer
HAN
12013202038
GTIN
4025113179135
Outer diameter
45.0 mm
Operating temperature
-50 to +120 °C
Color
Weight
0.680 kg/m
Nominal diameter
45.0 mm
Nominal size in inches
1 1/4 inch
Surface
Galvanized
IP protection)
IP68
Material
Steel
