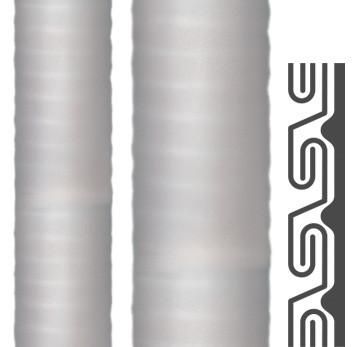

Flexa 12140801022 FLEXAgraff-SI-ASF AD27 21x27mm grey metal protection hose

Description

Features

Reviews

Metal protection hose FLEXAgraff-SI-ASF, rings, IP 68 spiral wound, double folded profile (Agraff), SI jacket, non-flame propagating Material: galvanized steel / silicone (SI), color: gray Temperature range: -50°C ... +180°C Approvals: VDE-tested according to EN IEC 61386-23 / Gost Properties: very flexible / flame retardant / high temperature resistant / high shielding factor / good electrical insulation / halogen-free / no twisting of the hose / high tensile and torsional strength / high shielding factor Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems / power plants

Property	Value
Nominal diameter:	27.0 mm
Surface:	galvanized
Coating material 1st layer:	silicone
Coating material 2nd layer (outer):	without coating
Approval according to DIN EN 61386-23:	yes
Nominal size in inches:	3/4 inch
Inner diameter:	21.0 mm
Outer diameter:	27.0 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	-50 to +180 °C
Tensile strength:	1000 N
Bending radius, static:	90 mm
Weight:	0.500 kg/m
Color:	gray
Hanging load:	150 N
Electrical properties:	with insulating properties
Flame propagating:	no
Use in Ex areas:	no
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
Approval according to CSA:	no
Material:	steel
Protection class (IP):	IP68
Bending behavior:	flexible
