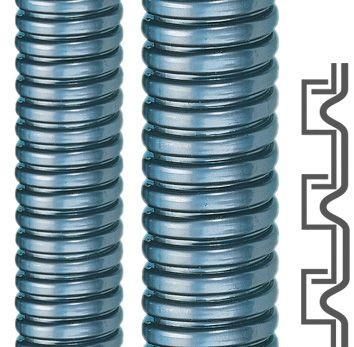

Flexa 12210711038 SPR-PU-AS AD45 38x45mm metallic blue metal protection hose

Description

Features

Reviews

Metal protection hose SPR-PU-AS, rings, IP 68, V2 (UL 94) spiral-wound metal hose, S-profile, oil-resistant PU jacket Material: galvanized steel / polyurethane, color: metallic blue Temperature range: -50°C ... +100°C ^ +130°C Approvals: VDE-tested according to EN IEC 61386-23 / Gost Properties: very flexible / oil, petrol and grease resistant / halogen-, silicone- and cadmium-free / high toughness and abrasion resistance / microbe-resistant / very good behavior at low temperatures Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems

Property	Value
Nominal diameter:	45.0 mm
Surface:	galvanized
Sheathing material 1st layer:	polyurethane (PUR)
Sheathing material 2nd layer (outer):	without sheath
Approval according to DIN EN 61386-23:	yes
Nominal size in inches:	1 1/4 inch
Inner diameter:	38.0 mm
Outer diameter:	45.0 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	-50 to +100 °C
Tensile strength:	1000 N
Bending radius, static:	120 mm
Weight:	0.720 kg/m
Color:	blue
Hanging load:	450 N
Electrical properties:	with conductive properties
Flame propagating:	yes
Use in Ex areas:	no
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
Approval according to CSA:	no
Material:	steel
Protection class (IP):	IP68
Bending behavior:	flexible
