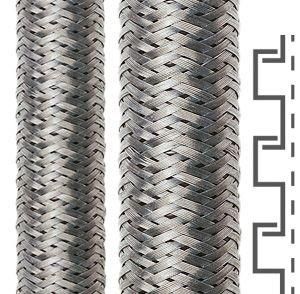

Metal protection hose SPR-CU-AS, rings, IP 40 spiral wound, S-profile, copper wire braiding Material: galvanized steel / tinned copper Temperature range: -50°C ... +250°C Approvals: VDE-tested according to EN IEC 61386-23 / Gost / EMC-tested Properties: highly flexible / high tensile, torsional and bending strength / no untwisting of the hose Area of application: for heavy mechanical stress / mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems / EMC applications
| Property | Value |
| Nominal diameter: | 36.0 mm |
| Surface: | galvanized |
| Sheathing material 2nd layer (outer): | without sheathing |
| Approval according to DIN EN 61386-23: | yes |
| Nominal size in inches: | 1 inch |
| Inner diameter: | 29.0 mm |
| Outer diameter: | 36.0 mm |
| Seal: | without seal |
| Compressive strength: | 1250 N |
| Operating temperature: | -50 to +250 °C |
| Tensile strength: | 1000 N |
| Bending radius, static: | 65 mm |
| Weight: | 0.750 kg/m |
| Color: | metallic |
| Hanging load: | 450 N |
| Electrical properties: | with conductive properties |
| Flame-spreading: | no |
| Use in Ex areas: | no |
| Approval according to BWB: | no |
| Approval according to VDE-EMV/emc: | yes |
| Approval according to FI: | no |
| With approval according to UL: | no |
| Approval according to CSA: | no |
| Material: | steel |
| Protection class (IP): | IP40 |
| Bending behavior: | flexible |
Features
Inner diameter
29.0 mm
Use in Ex area
No
Bending radius, static
65 mm
Bending behavior
Flexibel
Flame propagating
No
HAB
SPR-CU-AS AD36 29x36mm galvanized steel/CU
Minimal order
25 meters
Manufacturer
HAN
14016701029
GTIN
4025113139818
Outer diameter
36.0 mm
Operating temperature
-50 to +250 °C
Color
Weight
0.750 kg/m
Nominal diameter
36.0 mm
Nominal size in inches
Inch
Surface
Galvanized
IP protection)
IP40
Material
Steel
